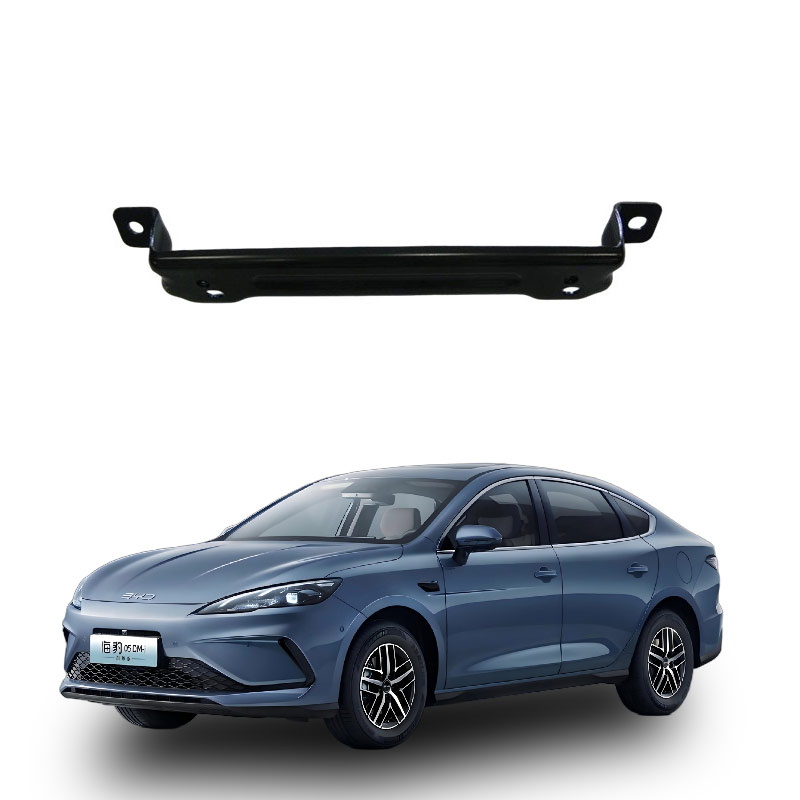

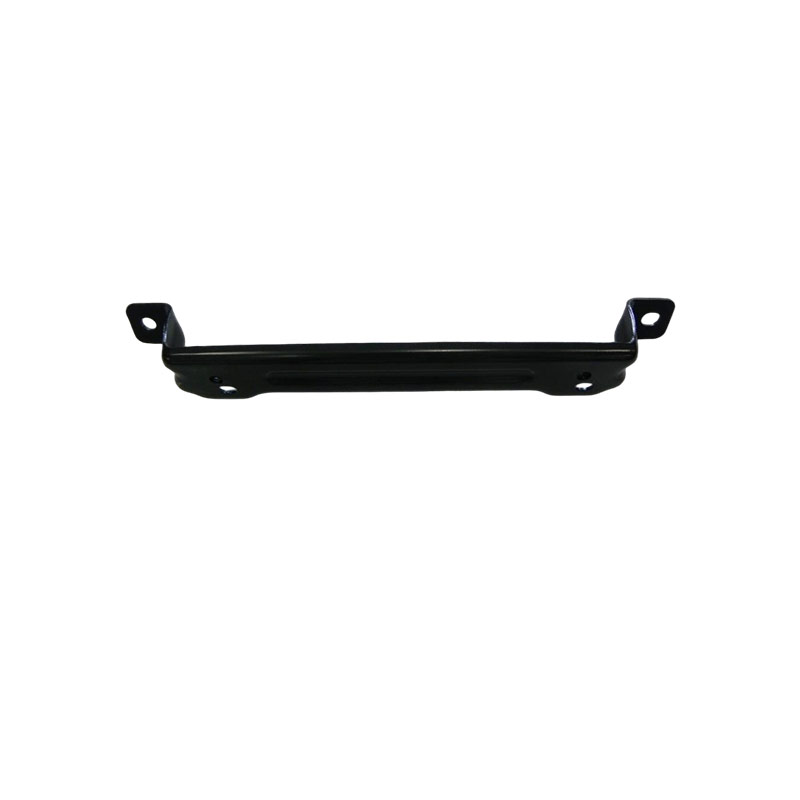

What is the car ceiling handle bracket?
The car ceiling handle bracket is the component that fixes the interior ceiling handle (also known as the vehicle roof handle or interior handle). It securely attaches the handle to the vehicle roof frame, allowing you to maintain stability during bumpy rides, sudden braking, or turns.
Material and Design: The bracket is typically made of sturdy materials such as hot-formed steel, and its internal structure is ingeniously designed, making it very sturdy when installed.
Fixing Method: The handle is not directly screwed onto the roof, but is fixed through metal clasps (with hooked ends) or screws on the bracket. This makes disassembly and reassembly somewhat difficult, resulting in high durability.
If you want to install or replace it yourself, before proceeding, be aware that the installation holes and clasp structures may vary depending on the vehicle model. It is best to confirm the original vehicle's reserved position before starting to avoid damaging the roof.
The main function of the car ceiling handle (roof handle) bracket is to firmly fix the handle to the vehicle body, ensuring it can withstand significant force without deforming or falling off. In simple terms, the bracket is the "skeleton" and "anchor point" of the handle.
Specific functions include:
- Providing a secure fixing point: The bracket secures the handle to the roof beam or sheet metal using screws or clasps, ensuring the handle remains in place during normal use and emergency situations.
- Ensuring load-bearing strength: To ensure strength, the bracket typically uses high-strength steel, while the crossbeam used to fix the bracket is made of hot-formed steel, allowing the entire structure to withstand significant force. For example, Volkswagen's roof handle can withstand 100 kilograms of weight, and even someone pulling a swing will not damage it.
- Ensuring safety: The roof handle is a safety feature. During vehicle bumps, sudden braking, or turns, passengers can hold the handle to maintain balance and avoid body swaying and collision with the interior. The strength of the bracket directly determines the reliability of this safety feature.
Notes:
The load-bearing capacity of the handle varies by vehicle model, typically ranging from 100 to 200 kilograms. The specific value should be confirmed with the vehicle's user manual or manufacturer data.
The handle on the driver's side has a relatively smaller function, so some car manufacturers may remove the driver's handle or replace it with a mirror holder. This is not a reduction in features but rather a space optimization.
Although the handle can assist in stabilizing the body, the seat belt is the primary protection device. It cannot be replaced by the handle.
Common problems with the ceiling handle bracket (also called roof handle or interior handle) include loosening, abnormal noise, not returning to position, and even fracture. The root causes are usually long-term wear and tear, loose clasps, or aging of the bracket itself. Don't rush to the repair shop. First, check the fault type in the following order.
- Bracket loosening: It is likely that the fixing screws are loose. Open the plastic covers on both sides of the handle and use an internal hex or spline tool to tighten the screws.
- Handle not returning to position: This is usually due to insufficient internal spring force, being stuck by foreign objects, or a broken spring. You can first spray a little WD40 lubricant and clean the foreign objects; if it doesn't work, you will need to remove the handle and replace the spring.
- Bracket fracture: This is mostly a material or design issue, such as the bracket being too thin, using brittle plastic, and aging due to long-term exposure to the sun. Fractures can only be replaced with new parts.
Self-repair steps:
- Assembly and disassembly points: Bend the handle down, pry open the two small covers on both sides, and you can see the fixing screws. After removing the screws, gently pull out the handle from both sides and place it back. Use a soft cloth to prevent wear.
- Pay attention to installation direction: When installing it back, make sure to align the screw holes and do not apply excessive tightening force. Generally, the torque should be around 4Nm; if the original bolt has anti-loosening glue, clean the bolt thread before installation.
The situation where one cannot handle it by themselves: If it involves electronic sensors, side airbags installation, or if you are worried about the impact on safety after disassembly and assembly, it is recommended to go directly to a 4S store or a professional repair shop for handling.
If you want to know more, keep reading the other articles on this site!
