What is the anti-collision beam mounting plate on the left side of the car?

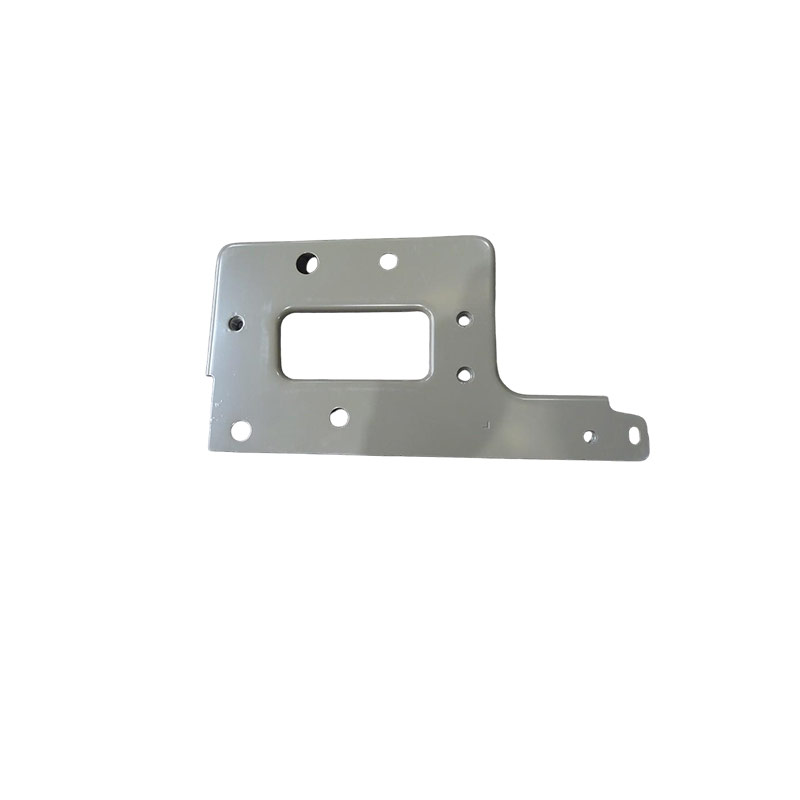

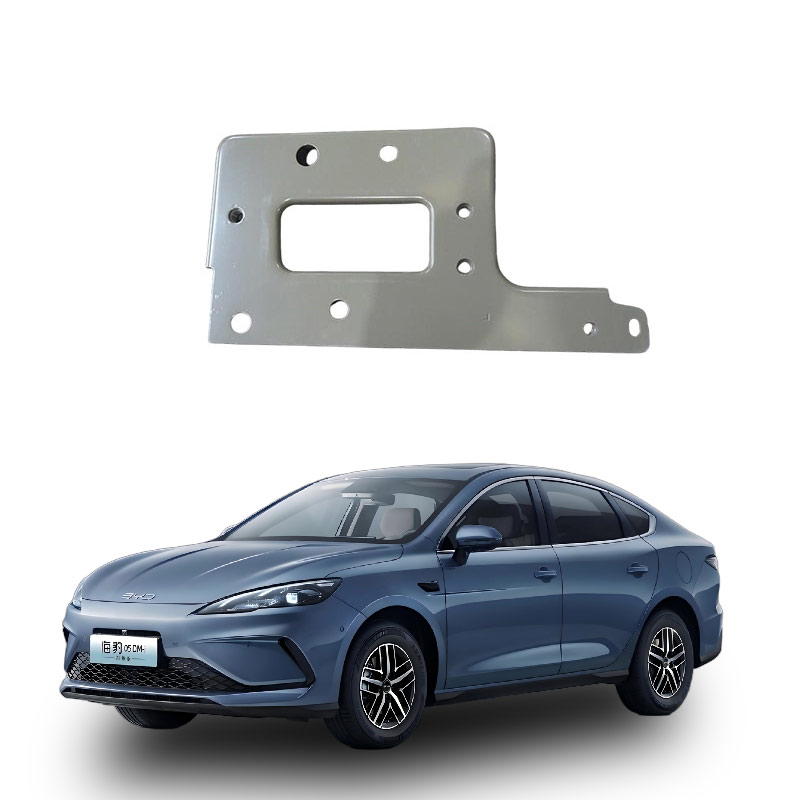

The left side bumper beam mounting plate is a metal connection piece that fixes the bumper beam to the vehicle's longitudinal beam. It acts as a "transitional base" between the bumper beam and the vehicle body.
The bumper beam itself consists of a main beam, an energy absorption box, and the mounting plate. The mounting plate is usually located at both ends of the bumper beam and is connected to the vehicle's longitudinal beam via bolts, allowing the bumper beam to be securely mounted on the front or rear of the vehicle. The left side mounting plate is responsible for connecting the left side.
In simple terms: The main beam is for absorbing impacts, the energy absorption box is for absorbing energy upon collapse, and the mounting plate is responsible for securely "fixing" these two components to the vehicle body, making it convenient for later disassembly and replacement.
It should be noted that the mounting plates have different structures and processes. Some are integrally formed with the energy absorption box, some are welded separately or fixed with bolts. The specific shape varies depending on the vehicle model. If you encounter this component during repair or damage assessment, it is recommended to refer to the specific vehicle repair manual for confirmation.
The main function of the left side bumper beam mounting plate is to connect and fix: It connects the main beam of the bumper to the vehicle's longitudinal beam, serving as the "bridge" component in the entire bumper assembly.
Specifically, there are these points:
Load-bearing connection: The mounting plate is one of the three components of the bumper structure (main beam, energy absorption box, mounting plate), through which the bumper can be installed on the vehicle's longitudinal beam.
Transmit collision force: During a collision, the impact force is transmitted from the main beam → energy absorption box → mounting plate → longitudinal beam, allowing the vehicle frame to bear the force together instead of bearing it alone.
Facilitates repair and replacement: The mounting plate is usually connected by bolts, and if damaged, it can be directly replaced without disturbing the vehicle's longitudinal beam. This reduces repair costs.
Note: The function of the left side mounting plate is symmetrical to the right side; there are no special differences. It does not rely on the energy absorption of the energy absorption box; the actual energy absorption is by the energy absorption box next to it.
If the left side bumper beam mounting plate fails, the core is to determine the degree of deformation: Minor deformation can be repaired, while severe deformation must be replaced. Do not make a decision based solely on the appearance.
The main function of the bumper beam mounting plate is to connect and fix: It connects the main beam of the bumper to the vehicle's longitudinal beam, serving as the "bridge" component in the entire bumper assembly.
Specifically, there are these points:
Load-bearing connection: The mounting plate is one of the three components of the bumper structure (main beam, energy absorption box, mounting plate), through which the bumper can be installed on the vehicle's longitudinal beam.
Transmit collision force: During a collision, the impact force is transmitted from the main beam → energy absorption box → mounting plate → longitudinal beam, allowing the vehicle frame to bear the force together instead of bearing it alone.
Facilitates repair and replacement: The mounting plate is usually connected by bolts, and if damaged, it can be directly replaced without disturbing the vehicle's longitudinal beam. This reduces repair costs and safety risks.
Note: The function of the left side mounting plate is symmetrical to the right side; there are no special differences; it does not rely on the energy absorption of the energy absorption box, the actual energy absorption is by the energy absorption box next to it.
If the left side bumper beam mounting plate fails, the core is to determine the degree of deformation: Minor deformation can be repaired, while severe deformation must be replaced, do not just rely on the appearance to decide.
The bumper beam mounting plate is a key component that connects the main beam of the bumper and the vehicle's longitudinal beam, its main function is to absorb energy during low-speed collisions, protecting the longitudinal beam from damage. Once it fails, the impact force during a collision will be directly transmitted to the vehicle's main beam, increasing repair costs and safety risks.
How to determine and handle it
First, check the degree of damage: Open the hood, focus on checking if the mounting plate has obvious folds, cracks, and if the fixing bolts have shifted or deformed. Minor dents or scratches can usually be repaired by sheet metal work; but if there is cracking, severe distortion, or a shift in the mounting hole position, it must be replaced as a whole.
Check associated damage: When the mounting plate is deformed, it often indicates a significant impact force. Also, check if the longitudinal beam, headlight frame, and fender liner on the same side are deformed. If the longitudinal beam is also bent, it is not something that can be solved by replacing just the mounting plate.
Choose repair method: Minor deformation can be corrected at a repair shop; for severe deformation or damage, it is recommended to replace the original factory parts and ensure the correct installation position and bolt connection method. When replacing, pay attention to whether the energy absorption box also needs to be replaced.
Impact after repair: Even if repaired, there may still be minor issues such as abnormal noise or steering deviation; if the bumper beam has been replaced, it may be considered an accident vehicle during the sale of the car, affecting the price of the used car.
If the mounting plate is only slightly deformed and does not affect the installation position, it can still be used, but if you can't get over it mentally, you can have it corrected at a 4S store or auto repair shop.
Special reminder
Safety First: Severely deformed mounting plates cannot ensure the energy absorption effect in case of another collision. For the sake of driving safety, if it needs to be replaced, it should be replaced. This expense is not recommended to be saved.
Responsibility Determination: If this malfunction is caused by an accident, it involves responsibility determination and insurance claims. It is recommended to keep the accident determination certificate and repair documents.
Accident Vehicle Identification: Replacing the impact bar is usually regarded as a sign of an accident vehicle, but the final determination should be based on the degree of impact and the damage to other parts of the vehicle.
If further confirmation of the repair plan is needed, a qualified repair shop can conduct a chassis and body structure inspection. If necessary, let the insurance company assess the damage.
