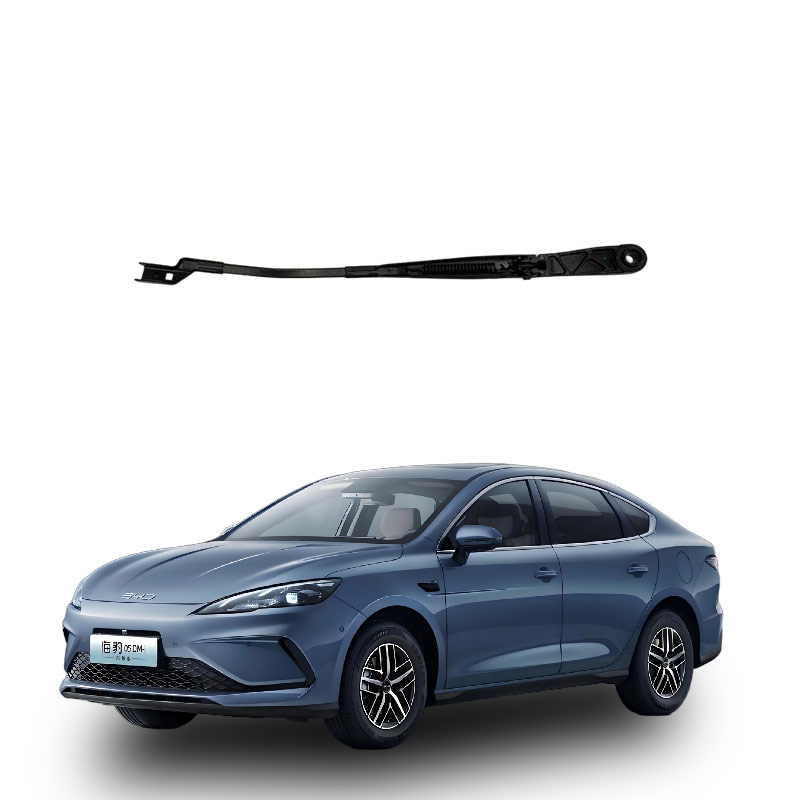

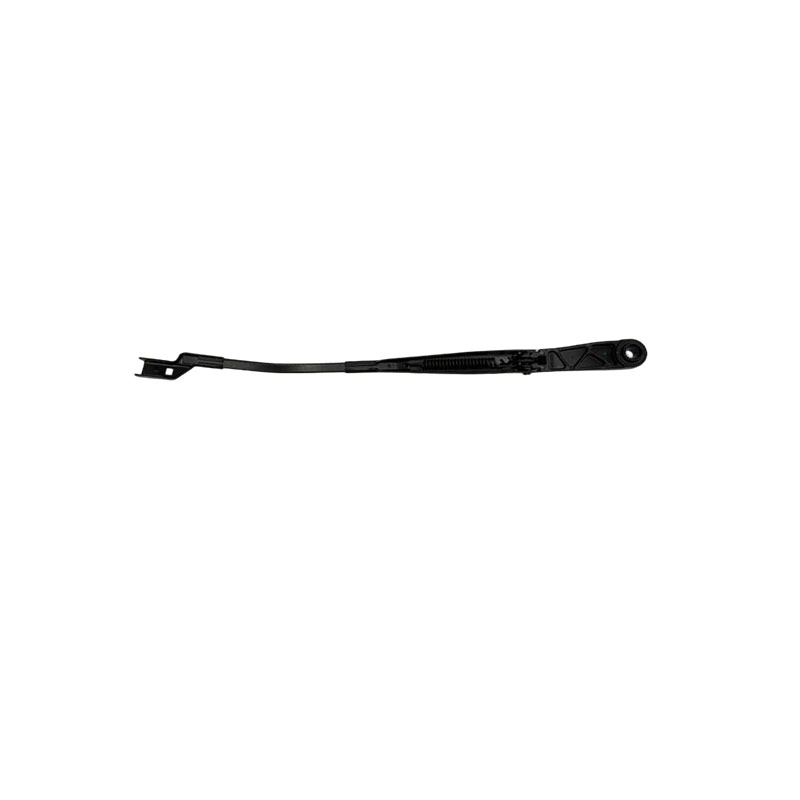

What is the car scraper arm assembly?
The automotive scraper arm assembly usually refers to the rain scraper arm (wiper arm), which is a strip-shaped metal component on the front windshield of a car used to support the wiper blade. There are generally two of them, and some vehicles also have them installed on the rear window.
The rain scraper arm is the supporting structure of the entire wiper system. One end is connected to the linkage mechanism via a fixing screw, and the other end is used to hold the wiper blade, transmitting the power from the motor to the blade, allowing it to swing back and forth closely against the glass to remove rain and dust.
Main components
Arm body: Made of metal (such as stainless steel, galvanized steel, etc.), some lightweight models use aluminum or carbon fiber. It is usually made in a segmented structure with a main arm and an auxiliary arm.
Connection end: Includes a rotating shaft interface for connecting to the linkage and a locking mechanism (U-shaped clip or nut) for fixing the wiper blade.
Spring device: Used to adjust the pressure of the wiper blade against the glass to ensure a tight fit.
Points to note
Interface type: Commonly seen are U-shaped interfaces and plug-in interfaces. Before replacing the wiper blade, make sure the interface type and size match.
Replacement precautions: For some models, due to the engine hood design interference, it is necessary to enter the wiper maintenance mode first before operating, otherwise it is prone to damage to the glass or the wiper arm.
Suggested accessory selection: When replacing, try to use components that match the original vehicle specifications. Non-original accessories may cause abnormal sounds, poor cleaning, and other problems due to size errors.
The function of the automotive scraper arm assembly (usually called the wiper arm) is to transfer the power of the wiper motor to the wiper blade and press the wiper blade firmly against the windshield, ensuring stable and clean wiping.
When disassembled, its functions mainly include:
Conducting power transmission: Converting the rotational motion of the motor into the reciprocating swing of the wiper blade. The angle also determines the wiping range and stopping position.
Providing downward pressure: Through the arm body structure and assist spring, the wiper blade is always in close contact with the glass, reducing jitter and abnormal sounds at high speeds or strong winds.
Support and connection: As the bridge between the linkage mechanism and the wiper blade, it withstands high-frequency swinging and wind resistance. Therefore, it is mostly made of stainless steel or galvanized steel, and some use aluminum or composite materials.
Common fault signs
If there is a problem with the wiper arm, it is usually manifested as incomplete wiping, water streaks, abnormal sounds, or incorrect stopping position of the wiper blade. At this time, you can check if the angle of the arm is offset, and if the spring is ineffective. If necessary, adjust or replace it.
Common faults of the wiper arm assembly include deformation, angle deviation, abnormal spring pressure, rusted and stuck, and loose connections. The specific manifestations and repair methods are different.
Let me help you sort it out in the order of "Symptom → Cause → How to Handle":
Common faults and handling
Unable to wipe cleanly, water streaks: Most likely due to angle deviation or insufficient spring pressure of the wiper arm, causing the rubber strip not to be tightly attached to the glass. You can first use a wrench to slightly adjust the angle of the arm (wrap a towel to prevent scratches), and then try again; if the spring is aged and lacks elasticity, you need to replace the entire wiper arm assembly.
Abnormal sounds, jumping: The most common reason is that the wiper arm is deformed or the angle is wrong. It may also be due to oil film on the glass or aging of the rubber strip. First, use dish soap mixed with water to wipe the glass to remove the oil film; if it still makes noise, use a wrench to slightly adjust the angle, turning clockwise for upward sounds and counterclockwise for downward sounds.
Difficulty in rotation, sticking: Check if the connection is rusted or stuck, or if there is a problem with the motor or transmission mechanism. Rust can be cleaned with rust remover; if the motor is overheating or has a burnt smell, it is necessary to inspect and repair the motor.
Difficulty in disassembly: Long-term exposure to sun and rain can cause rust and corrosion at the connection point, or the screws were tightened too tightly during installation. Spray rust remover before disassembly, do not forcefully pry, to avoid damaging the bracket.
Before doing it yourself, pay attention:
Some models need to enter the "wiper maintenance mode" to lift the wiper arm before it can be lifted. Directly forcing it may damage the glass or the motor. In addition, if the angle deviation exceeds 5° or the force is too strong, it is likely to damage the arm shaft. If you are not sure, it is advisable to go to a roadside store and spend a few dozen yuan to have the technician adjust it, which is much more convenient.
The recommended troubleshooting sequence is as follows: First, check if the rubber strip is aged; then, check if there is an oil film on the glass; and finally, adjust the angle of the windshield wiper arm. Most abnormal sounds and incomplete cleaning can actually be solved by replacing a new wiper blade or cleaning the glass. Don't change the entire assembly at the first attempt.
If you want to know more, keep reading the other articles on this site!
