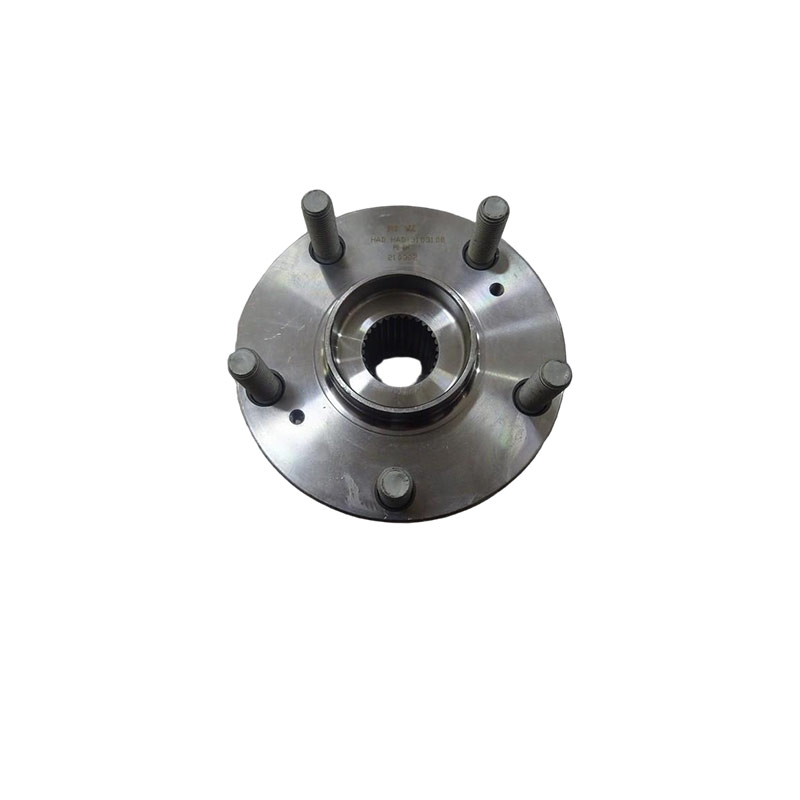

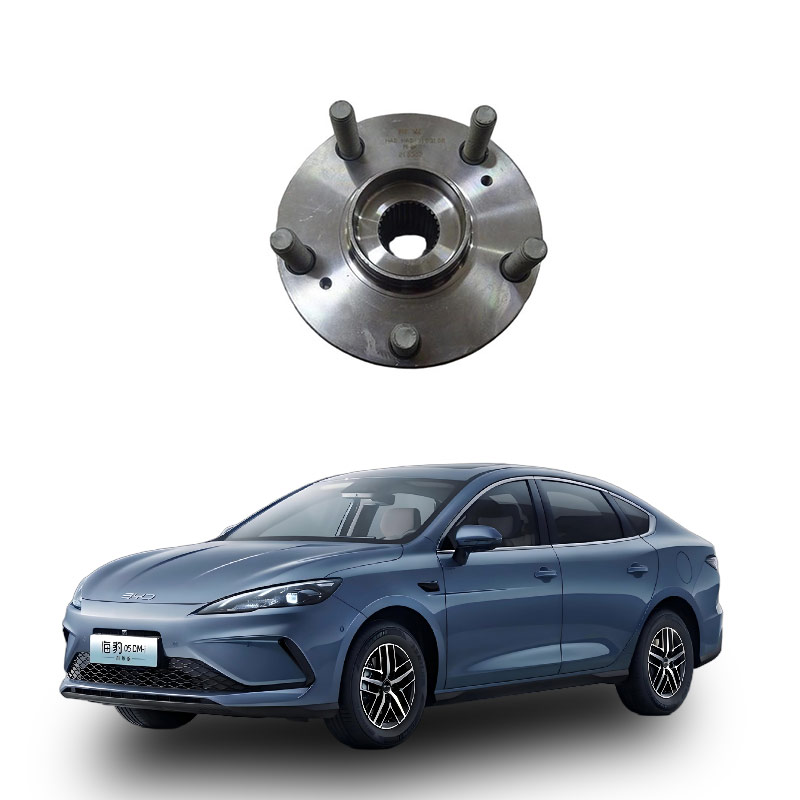

What is the front wheel hub assembly of a car?
The front wheel hub assembly of a car is essentially a single module that integrates bearings, hub flanges, seals, and in some cases, an ABS wheel speed sensor, all designed to support the rotation of the wheel, transfer power, and reduce friction. It is directly mounted on the steering knuckle and is the core component that enables the front wheel to rotate smoothly and provide safe braking.
This component is more integrated than traditional separate bearings. It is pre-tightened and lubricated at the factory, and installation only requires tightening it to the specified torque. There is no need to adjust the clearance on-site, which can reduce installation errors.
What does it consist of?
Bearings: The core component, made of bearing steel (such as GCr15), bearing the load of the wheel and operating at high speeds.
Hub flange: Combined with the inner ring of the bearing, connecting the brake disc and the wheel.
Sealing structure: Mostly double lip seals or double-layer seals, preventing dirt, water vapor from entering.
ABS wheel speed sensor (for some models): Integrates a magnetic encoder ring to provide wheel speed signals for the electronic stability system.
The difference from traditional bearings:
When installing traditional split bearings, the clearance needs to be adjusted on-site, which requires high skills from the technician; if it is too tight, it will overheat and wear out, and if it is too loose, the wheel will shake and make abnormal noises. However, the hub unit assembly is pre-tightened and lubricated at the factory, and installation is straightforward with higher precision. The downside is that it usually needs to be replaced as a whole when it breaks, and only the bearings cannot be replaced individually.
Usage reminder:
If you hear abnormal noises from the hub or the wheel slows down abnormally when turning, it may be a sign of bearing wear. You should check it promptly.
The bearings on both sides of the front wheel have similar working conditions. Even if only one side fails, it is recommended to replace them in pairs to maintain balance.
When replacing, use specialized tools to install them according to the manufacturer's specified torque. Do not hit with a hammer or remove the sealing ring. Otherwise, it is easy to get water and dust in, leading to early failure.
The front wheel hub unit assembly of a car mainly fulfills three core tasks: supporting the weight of the vehicle body, transmitting driving force and braking force, and ensuring smooth wheel rotation. These tasks directly affect the stability and safety of driving.
It can be understood as the "joint" connecting the wheel and the vehicle body, which needs to rotate smoothly while also being able to support it.
Support and bearing: Bearing the weight of the entire vehicle and mitigating the impact and vibration caused by uneven road surfaces.
Transmitting power: Transferring the driving force from the engine and the braking force to the wheels to achieve acceleration and braking.
Ensuring smooth driving: Reducing friction through the precise bearings to ensure smooth wheel rotation and maintain the adhesion between the tire and the ground, making steering more accurate.
Key Reminder
The hub unit is an easily worn component. If there are abnormal noises during driving (buzzing sounds), shaking of the steering wheel, or abnormal heating at the hub area, it is likely that it has worn out or been damaged. It is recommended to check and replace it in time.
When replacing, it is advisable to choose original factory or high-quality parts. Installation accuracy and sealing performance directly affect the service life and driving safety.
If the front wheel hub unit assembly is damaged, it cannot be towed; it needs to be replaced as soon as possible. Continuing to drive has safety risks.
Typical manifestations after damage:
Abnormal noise during driving: A "buzzing" sound gets louder as the vehicle speed increases, and the sound does not disappear when in neutral gear.
Shaking of the steering wheel or deviation: Shaking of the steering wheel, body shaking, vehicle running deviating, and uneven wear of the tires.
Influence on braking: Damage to the hub unit may affect the braking system, causing unresponsive braking and longer braking distance.
Wheel looseness: When lifting the vehicle, shaking the tires with both hands can feel a significant looseness, indicating that the bearing clearance has seriously exceeded the limit.
If the bearing balls break or the shaft head fractures, the wheel may suddenly lock up or fall off during driving, easily causing loss of control and rear-end collisions. After hearing abnormal sounds, it is recommended to send it for repair as soon as possible to avoid long-distance driving.
Maintenance plan and cost reference:
Confirm the degree of damage: First, go to a professional repair shop or 4S store for inspection to confirm that it is the hub unit assembly that is damaged, rather than tire wear, brakes, or other chassis components.
Overall replacement of the assembly: The hub units of modern cars are mostly maintenance-free seals. After damage, they are usually replaced as a whole, rather than replacing the bearings separately. Because the pre-tightening force, lubricating grease, and sealing of the assembly are set by the factory, it is difficult to restore the accuracy on-site, and it is prone to abnormal noise or early wear again.
It is recommended to replace in pairs: The working conditions of the bearings on both sides of the front wheels are similar. Even if only one side is damaged, it is recommended to replace both sides left and right at the same time to avoid problems on the other side occurring soon.
Part selection: Prioritize original factory parts or brands such as NTN, NSK, and SKF. Although aftermarket parts are cheaper, their durability and safety are much worse.
Post-replacement precautions:
Dynamic balance and four-wheel alignment: After replacing the hub unit, it is recommended to do a dynamic balance test; if the suspension components were moved during the disassembly and assembly process, it is best to do a four-wheel alignment again to avoid deviation and uneven tire wear.
Test drive inspection: After replacement, drive at low speed to confirm there is no abnormal shaking or noise; then drive normally.
Daily maintenance: Slow down before passing over speed bumps and potholes to reduce impact; have the technician check the bearing looseness during maintenance.
