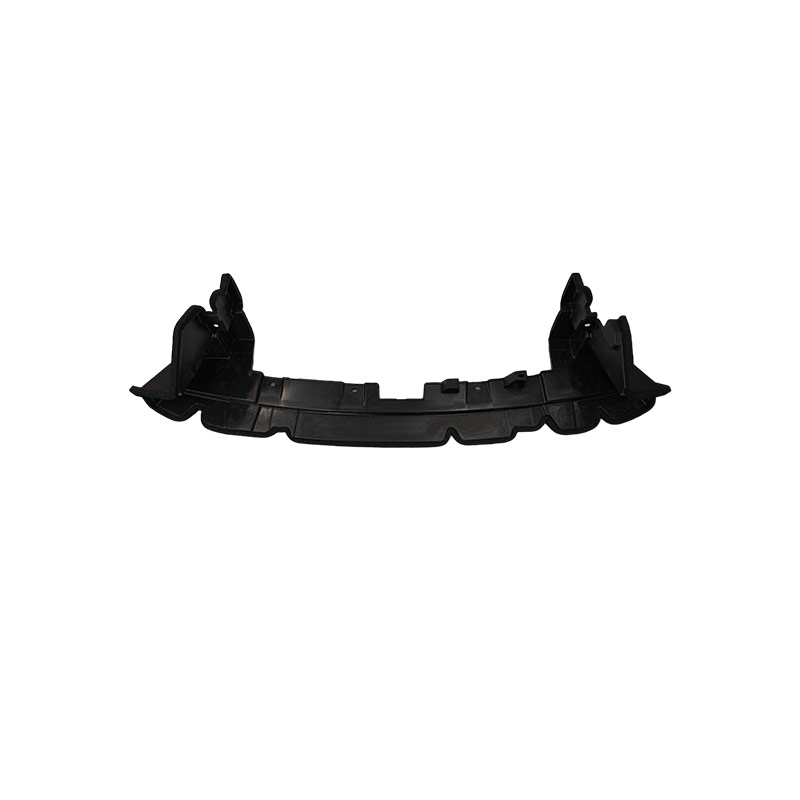

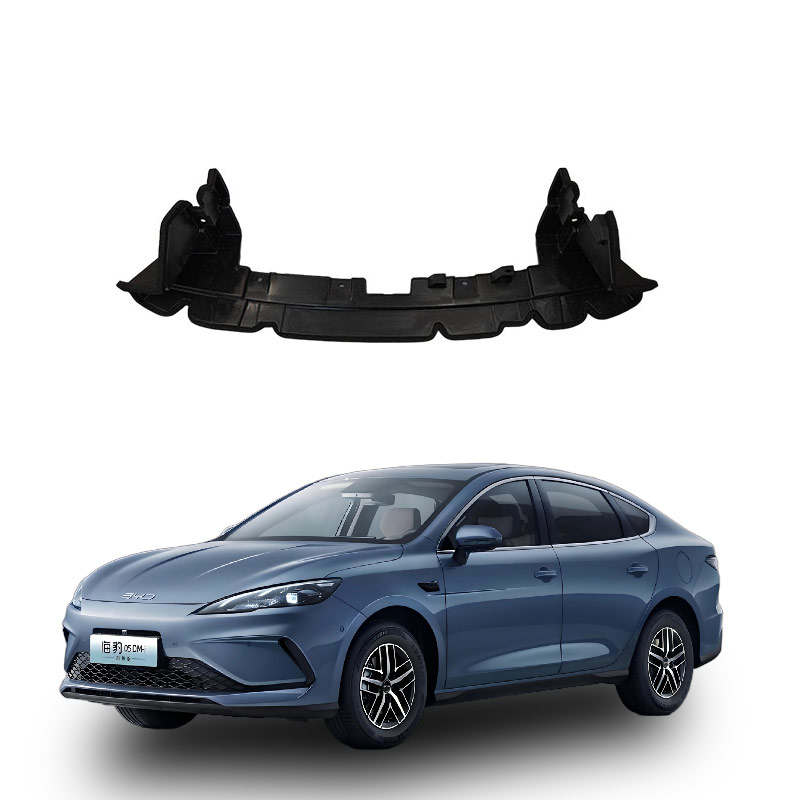

What is the guide plate assembly on the car radiator?
The guide plate assembly on the car radiator serves the core function of directing the airflow, allowing the radiator to dissipate heat efficiently. Specifically, it is mainly composed of the main flow guide plate, the side flow guide part, and the flexible connecting piece, and is installed in front or above the radiator, responsible for concentrating and directing the incoming air towards the radiator core, while preventing the hot air from the engine compartment from flowing back, thereby enhancing the heat dissipation efficiency. Some designs also optimize the structure of the guide plate to reduce air backflow and noise. In simple terms, it is like adding a "ventilation cover" to the radiator, ensuring that the air is directed to the right place.
Its specific functions are:
Flow guiding and air supply: Guiding the air from the front of the vehicle as much as possible into the radiator to accelerate heat dissipation.
Heat insulation and sealing: Preventing the heat from the engine compartment from flowing back, affecting the cooling effect of the radiator.
Improving efficiency: By optimizing the airflow path, avoiding insufficient heat dissipation, and ensuring the engine operates at the optimal temperature.
It should be noted that the "guide plate" below the front bumper of the car, which is used to stabilize the vehicle and reduce lift, and the "upper guide plate assembly" on the radiator, which is used to guide the cooling airflow, are two different components. The latter is part of the cooling system and not a component of the vehicle's aerodynamic package.
The core function of the guide plate assembly on the car radiator is to direct the airflow towards the radiator core and seal the gap between the radiator and the grille, allowing for more efficient cooling.
Specifically, it does the following:
Flow guiding and air supply: Guiding the air from the front of the vehicle as much as possible into the radiator to accelerate heat dissipation.
Sealing and isolation: Sealing the gap between the radiator and the front grille to prevent air from flowing chaotically; at the same time, it can also prevent hot air from the engine compartment from flowing in, avoiding an impact on the cooling effect.
Auxiliary stabilization: By organizing the airflow in the vehicle, it can also reduce the lift generated by the air flow on the vehicle, making the vehicle more stable.
Structural optimization: Nowadays, many guide plates are made into one-piece structures with blunt angles, which can improve the guiding efficiency, reduce air backflow, and avoid insufficient heat dissipation.
In simple terms, it is a small component that "sends air" and "stops leaks" for the radiator, and is crucial for controlling the engine temperature.
The "upper guide plate assembly" on the car radiator is a key structural component that fixes the radiator core and connects the water chamber. It itself may malfunction without directly causing the engine to overheat, but it can trigger a chain reaction such as water leakage, loose fixation, etc., and needs to be distinguished from the main failure of the radiator body.
There is no separate maintenance guide for the "upper guide plate assembly" in public materials, but based on the common failure patterns of the radiator, the following categories can be used for troubleshooting and handling.
Common failure types and judgments:
Leakage at the joint between the guide plate and the core tube or water chamber: This is the most common failure point. The upper guide plate is connected to the core tube and water chamber through welding or sealing gaskets. After long-term alternating cold and hot conditions, the weld points crack or the sealing gasket ages, and coolant will seep out from here, manifesting as cooling fluid traces or water stains on the top of the radiator.
Deformation or depression of the guide plate: Due to impact, tilting, or uneven force during installation, the upper guide plate may become deformed or depressed, affecting the sealing effect, and even squeezing the core tube, causing local blockage. You can check the surface with your hand to check the flatness.
Loose fasteners or screws of the guide plate: The upper guide plate is fixed to the vehicle with fasteners or screws. If they loosen, the radiator will shake during driving, and there may be abnormal sounds. Over time, it will also wear out the guide plate itself.
Corrosion of the guide plate: If the coolant quality is poor or it is not replaced for a long time, electrochemical corrosion will occur, and the edges of the guide plate will rust, become thinner, and eventually perforate and leak.
If you find leakage at the position of the guide plate on the radiator, do not rush to apply sealant or weld. You need to confirm whether it is the guide plate itself that has cracked or the seal between the guide plate and the core tube has failed. The repair methods are different, and if the wrong repair is done, it is likely to cause repeated leakage.
Maintenance and repair suggestions
Minor leakage: If there is only slight leakage at the joint and the main body of the guide plate is intact, you can try cleaning it thoroughly and then repair it by soldering or using high-temperature resistant sealant. However, the prerequisite is that the crack is small and the surface can be cleaned properly.
Guide plate deformation: Small depressions can be attempted to be leveled and corrected using a hook ring; for severe deformation or folds that affect sealing, it is recommended to directly replace the guide plate assembly instead of attempting to correct it forcibly.
Loose fixation: Tighten the fastening clips or bolts, check if the buffer pad is aged, and replace the buffer pad if necessary.
Severe corrosion of the guide plate: The guide plate has rusted through or thinned out, and there is no repair value. A new guide plate assembly must be replaced, and at the same time, check the coolant condition and replace the不合格 coolant to prevent further corrosion.
Troubleshooting steps (follow in order)：
Check the top area of the radiator guide plate in cold engine condition， looking for coolant traces， white scale， or green/red crystals.
Press the guide plate with your hand to feel if it is loose， and check if the fastening clips are intact.
Use the water filling method or air pressure method to check the leakage point， focusing on observing bubbles at the joint between the guide plate and the core.
If the guide plate seal fails， remove it and check if there are any damages at the end of the core. Only replace the guide plate if the core itself is intact； otherwise， replacing both is more convenient.
If there is only minor leakage in the guide plate but you don't want to repair it immediately， you can use water tank leak stopper temporarily. However， this is only a temporary measure， and the leak stopper may block small core tubes， so it is not recommended to rely on it for a long time.
Determine if replacement is necessary：
Worth repairing： The guide plate only has seam leakage， weld point cracking， or slight deformation， and the core and water chamber are intact. The repair cost is low.
Suggestion to replace： The guide plate has corroded through， severely deformed， or has been repaired multiple times but still leaks， or the price of the guide plate is not high but the labor cost for disassembly and assembly is high. It is more cost-effective to replace it directly.
Must replace： The guide plate is damaged and has caused the core tube to be deformed or cracked. At this point， repairing the guide plate alone is meaningless. An assessment of the entire radiator replacement is necessary.
