Function of the car steering assembly
The function of the car steering assembly is, in simple terms, to convey the driver's steering intention and, in conjunction with the power-assisted system, enable the vehicle to turn precisely.
Specifically, the steering assembly consists of the steering wheel body, steering shaft, and angle/torque sensors, among other components. Its core responsibilities are divided into three parts:
- Transmitting steering commands: Converting the force applied by the driver to turn the steering wheel into torque and transmitting it to the steering system to make the wheels turn.
- Sensing and feedback of driving intentions: Modern steering assemblies incorporate sensors that monitor the steering angle and force in real time, combined with the electronic power-assisted system, providing a light feel at low speeds and a more stable feel at high speeds.
- Providing road feedback and safety functions: A good steering wheel can filter out some road vibrations while retaining a clear sense of the road; it also integrates a horn, multifunction buttons, and the driver's side airbag.
Technical differences
- Traditional hydraulic assistance: Reliable in structure, but with high energy consumption. Road impacts are easily transmitted to the steering wheel, and it is prone to "jamming" on poor roads.
- Electric assistance: Compact in structure and more fuel-efficient. It can adjust the assistance dynamically based on the vehicle speed and is currently the mainstream solution.
- Line-controlled steering: There is no mechanical connection between the steering wheel and the steering wheel shaft. It is fully controlled by electrical signals and can actively block incorrect driver operations. This is the future trend.
Here, a concept needs to be distinguished: The steering assembly only handles the "input of instructions" part. The actual function of amplifying the steering force and pushing the wheels is the steering gear assembly (steering mechanism). The two are often mentioned together, but they have different functions.

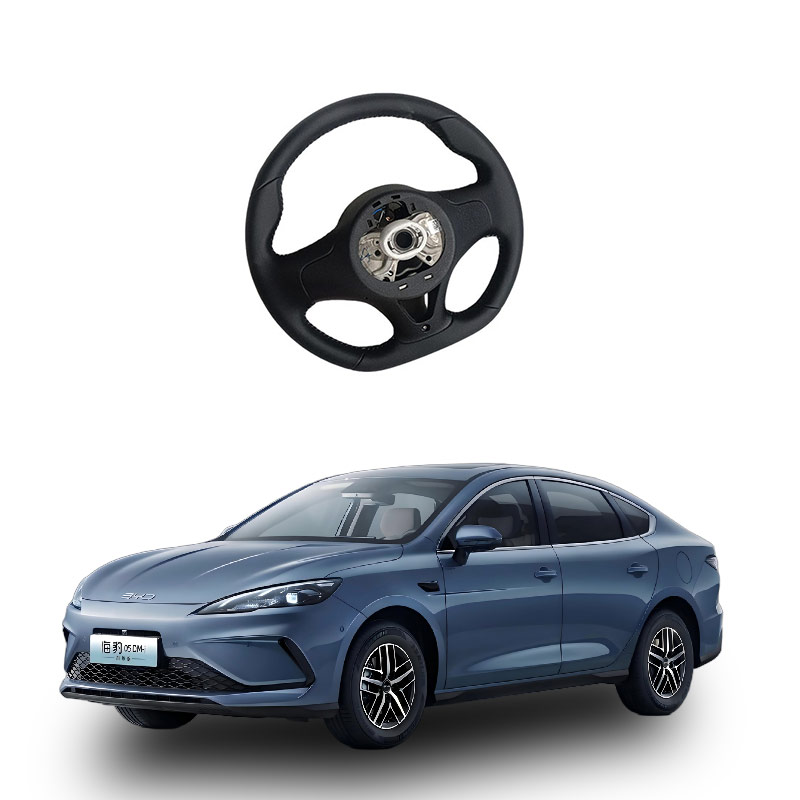

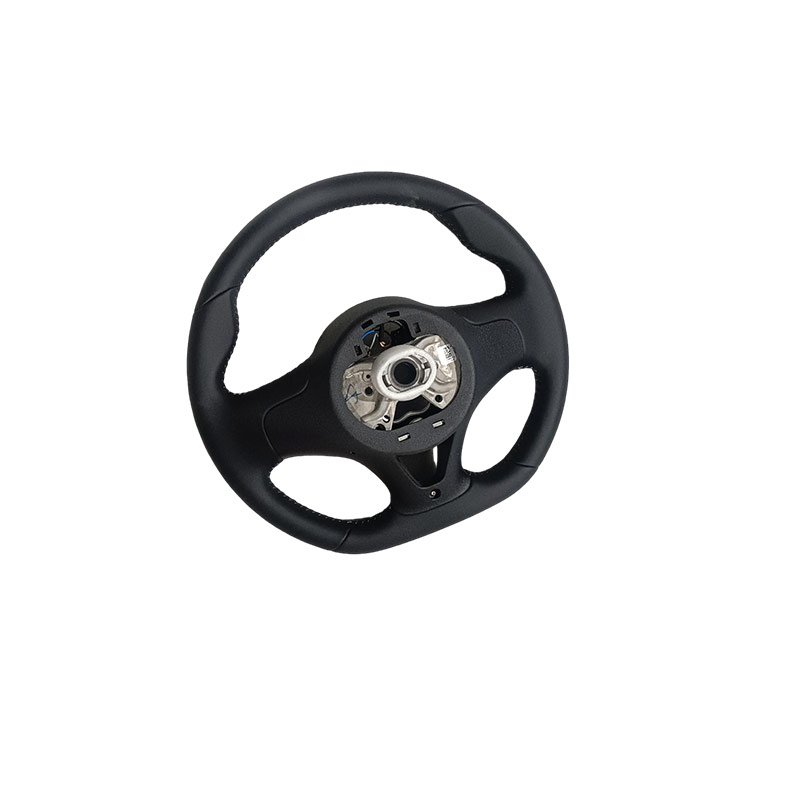

The steering assembly usually refers to the steering wheel body and related integrated components, and its core includes the frame, outer covering layer, safety airbag, control buttons, and steering column, etc. Different vehicle models may have different configurations. It is important to note that the specific definition of "assembly" varies in different scenarios. Maintenance parts may only refer to the steering wheel body, while system-level descriptions may include the steering column.
Main structure includes:
- Frame and outer covering layer: The frame is generally made of zinc alloy, aluminum alloy, or magnesium alloy through die-casting to ensure a sturdy structure; the outer covering layer is wrapped around the frame and is usually made of plastic, leather, or wood, providing a grip feel.
- Safety airbag: Located at the center of the steering wheel, it rapidly deploys to protect the driver's head and chest in case of a collision. Its normal operation relies on the transmission of signals through the steering wheel hairspring.
- Control buttons and modules: Integrated with horn contacts, audio adjustment, cruise control, phone operation, etc. Some high-end models also feature steering wheel heating or capacitance sensing modules.
What are the electronic and sensing components?
- Sensors: In the line-controlled steering system, there are steering angle sensors and torque sensors to collect the driver's steering intentions and convert them into digital signals.
- Electronic units and motors: Including the steering control module and the return torque motor, responsible for processing signals and providing road feedback. In the line-controlled system, the physical transmission shaft can be eliminated.
- Steering hairspring: Connecting the electronic equipment of the steering wheel to the internal components of the steering column to ensure that the wires do not break due to frequent rotation and to ensure the transmission of airbag and button signals.
How to distinguish from the steering column?
- Steering assembly: Mainly refers to the part that the driver directly contacts, including the steering wheel body, airbag, buttons, etc.
- Steering column: Is the pillar connecting the steering wheel to the steering gear. In some vehicle maintenance parts, the steering column and steering assembly are sold separately, but in system descriptions, it is sometimes classified as the steering control mechanism.
- Steering tie rod and steering gear: Belong to the steering transmission mechanism and execution mechanism, not within the scope of the steering assembly, responsible for transmitting the steering force to the wheels.
Would you like me to compare the differences in the definitions of the steering assembly in maintenance parts and system-level descriptions? This can help you understand the specific meanings in different scenarios.
