What are the components of the car grille?
The car grille (also known as the middle net) can be classified into several types based on its structure and function. Here's a brief overview:
From the perspective of the basic structure, a complete grille component usually consists of the following parts:
Grille frame: The supporting skeleton of the entire grille, usually made of metal or plastic, responsible for fixing and shaping.
Grille mesh structure/leaves: The main part of the grille, composed of grids or leaves, allowing air to pass through and blocking large debris from entering the engine compartment. The spacing and shape of the leaves will affect air intake and wind resistance.
Grille decorative parts: Such as chrome strips, vehicle logos, etc., mainly for enhancing the appearance.
Grille sealing strips: Installed at the edges, preventing liquids and debris such as rainwater and dust from entering the engine compartment, usually made of rubber.
Supporting frame and installation clips: Used to firmly install the grille on the vehicle body. Clip-type disassembly is convenient, while bolt-type is more stable.
By function type, grille components have these common forms:
Ordinary grille: The most common, mainly serving as decoration and heat dissipation.

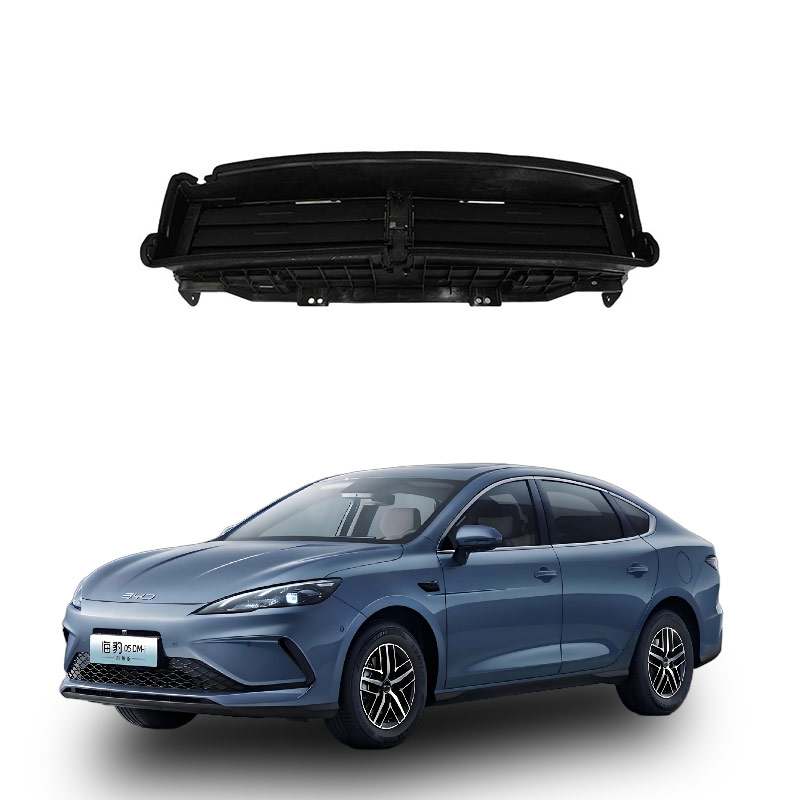

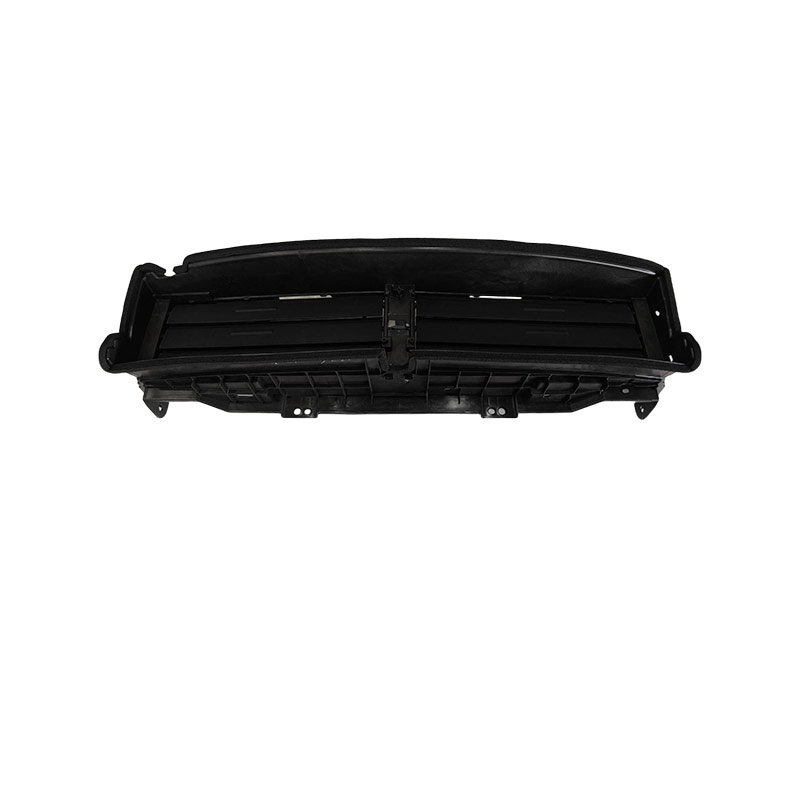

Active intake grille (AGS): This is more intelligent, with movable leaves inside, controlled by an electric motor and ECU. When the engine is cold, closing the leaves can accelerate warming-up and save fuel; at high speeds, closing them can reduce wind resistance; when the water temperature is high, they will automatically open for cooling.
Aerodynamic grille: Mainly for optimizing airflow, reducing wind resistance, and improving fuel economy, commonly found in sports models or pure electric vehicles.
By installation position:
Upper grille: Located below the hood and between the headlights, mainly for cooling the engine compartment, some models may integrate radar or cameras here.
Lower grille: In the middle of the front bumper, usually larger in size, responsible for auxiliary cooling and aerodynamic optimization.
Side air intakes: On the sides of the front bumper, mostly decorative, some performance cars use them to guide airflow to cool the brakes.
In addition, by material, it can be divided into metal grilles (such as aluminum alloy), plastic grilles (such as ABS, PP), and carbon fiber grilles; by shape, there are waterfall-style, horizontal-strip-style, honeycomb-style, star-shaped, etc. designs.
The main functions of the car grille components (also known as the middle net or intake grille) are: heat dissipation ventilation, reducing wind resistance, and protecting internal components, while also serving as the functional part of the vehicle's front appearance.
Specifically:
Heat dissipation and intake: The grille is located in front of the vehicle, allowing air to enter the engine compartment when driving, helping the engine dissipate heat and prevent overheating; at the same time, it provides sufficient air for the engine to ensure combustion efficiency.
Reducing wind resistance: At high speeds, the grille can guide the airflow, reducing air resistance, and helping to improve fuel economy.
Protection and decoration: The grille covers the radiator and the front of the engine, protecting it from impact from flying debris, and its shape is also an important part of the vehicle's front design.
It should be noted that due to the absence of an engine in electric vehicles, the demand for intake and heat dissipation has significantly decreased, so many electric vehicles have eliminated traditional grilles or only retained decorative designs.
The most common manifestations of car grille component failures are:
Engine fault light on, or the grille stuck in the open/closed position and unable to move, most often occurring in the motor or control circuit of the active intake grille.
First, determine which type of failure it is, and then decide how to handle it:
Common failure types
Motor damage: The grille gets stuck, cannot open or close, or the motor runs continuously and breaks the connecting rod. Replacing the motor alone usually costs several hundred yuan, and replacing the entire assembly will be much more expensive.
Line or sensor problems: Loose plugs, oxidized terminals, broken lines, or abnormal temperature sensor data, resulting in the computer not receiving signals.
Mechanical jamming: Leaf deformation, getting stuck in sand, stones, or foreign objects, the grille cannot rotate, more likely to trigger at high speeds or in rainy weather.
Computer system mismatch: When submerged, the water pressure pushes the grille, causing a conflict with the computer control logic and triggering a fault. Generally, the fault code can be cleared.
Handling suggestions
First, read the fault code: Use the diagnostic computer to read the fault code and freeze frame data to determine which part of the process the fault occurred in. Don't rush to replace the part.
Distinguish between the motor and the assembly: The motor of the active grille is very common to fail. In many cases, replacing only the motor can solve the problem. There is no need to replace the entire grille assembly, which can save a lot of money.
Check the wiring and plugs: Unplug the motor plug and test the voltage of the power supply, grounding, and communication lines to see if they are normal. If the wiring is fine, it is basically the motor itself that is broken.
Clean up stuck foreign objects: If only the blade is stuck with sand or debris, remove it and clean it, and check if the movement is smooth.
If the grille is stuck in the closed position and prevents the engine from cooling, it may cause high temperatures. In severe cases, it may cause cylinder seizure. It needs to be dealt with as soon as possible, don't delay.
