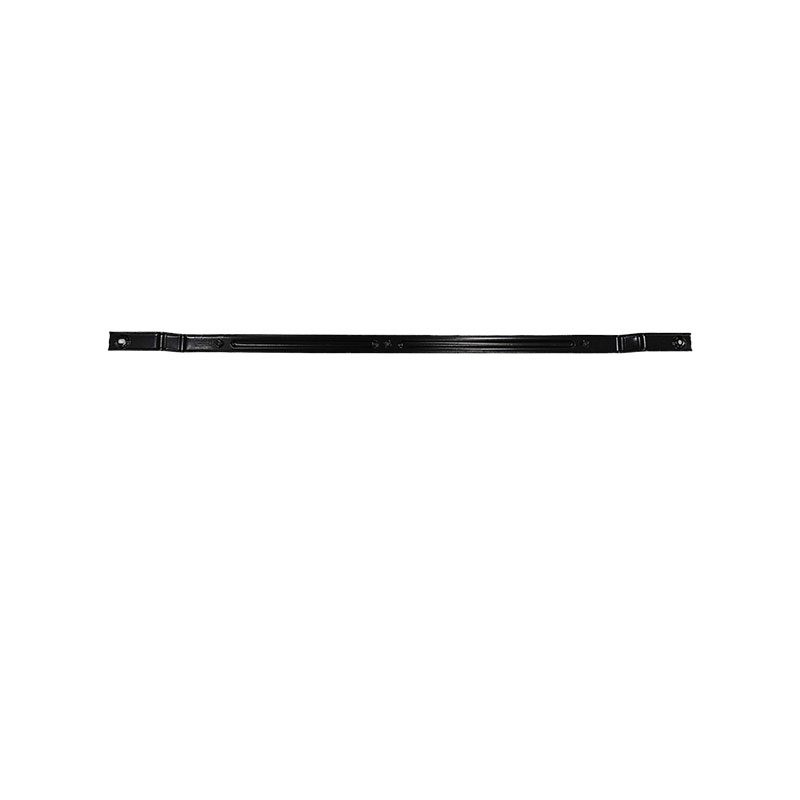

What is the mud guard bracket assembly for the front sub-frame of the car?
The front sub-frame mud guard bracket assembly is a supporting structure used to fix the mud guard (mud shield) onto the vehicle's front sub-frame. It mainly serves the functions of installation positioning and shock absorption.
Its core components and working principle are as follows:
- Installation base: A base with through holes, used for connecting the vehicle's front sub-frame.
- Supporting piece: Inserted into the through holes of the installation base, one end is used for installing the mud guard, and the other end is connected to the damping structure.
- Damping structure: Comprises two groups, one group is at the end of the supporting piece, and the other group is between the inner wall of the through hole and the outer wall of the supporting piece, used to absorb road impacts and enhance shock resistance.
This component is a functional connection piece in the front vehicle structure. It can be understood simply as a "supporting bracket that connects the mud guard and the vehicle frame". It is not the mud guard itself. The mud guard is usually a plate-like structure installed behind the wheel outer frame, serving to prevent mud and debris from splashing and damaging the vehicle's paint surface.
The core function of the front sub-frame mud guard bracket assembly is to firmly install the mud guard (also known as the mud shield) in front of the front wheels onto the frame and support it to perform the protective task of blocking the splashing of mud and debris.
Specifically, its functions are mainly reflected in the following aspects:
- Fixation and bearing capacity: The bracket assembly is the key structure connecting the vehicle frame and the mud guard. It firmly fixes the mud guard through components such as mounting plates and connecting rods. The impact force from sand, water mist, and air flow generated by the tires will continuously act on the mud guard, and the bracket must have sufficient rigidity to prevent the mud guard from loosening, shaking, or making abnormal sounds.
- Protection of the vehicle body and chassis: With the support of the bracket, the mud guard can stably perform its protective function - blocking the splashing of mud and debris during driving, preventing them from damaging the vehicle's paint surface, and also preventing mud and water from adhering to the chassis pull rods and ball joints, causing rust.
- Maintaining the cleanliness of the engine compartment: The front mud guard can effectively block water and dust from entering the engine compartment, preventing dirt from covering the engine and affecting heat dissipation, and also buffering the impact of uneven roads on the engine.
- Improving the driving experience: Reducing the splashing of stones and mud onto the windows during high-speed driving, maintaining the cleanliness of the vehicle and the interior, and reducing the frequency of washing the car.
Front sub-frame mud guard bracket (i.e., front wheel mud guard bracket) failure is most commonly caused by bracket fracture or loose connection bolts. This will directly lead to the shaking of the mud guard, abnormal sounds, or even its falling off.
Causes of failure:
- Bolt loosening/loosening: This is the primary cause of bracket failure. When the connecting bolts become abnormally loose, the bracket's restraint fails, and abnormal micro-motion occurs under vibration and alternating loads, eventually generating fatigue cracks and breaking at the stress concentration point.
- Structural fatigue: Long-term driving on rough and gravel roads causes the bracket to repeatedly withstand impacts, resulting in fatigue accumulation in the metal. Brackets with thinner sections and no reinforcement design are more prone to loosening, deformation, or fracture.
- Material defects: Excessive non-metallic inclusions in the raw materials accelerate the initiation and expansion of cracks, being a secondary contributing factor.
- External force damage: Front collisions may directly cause the bracket to deform or the installation points to shift, even if the appearance is not obvious, it will change the stress state.
Suggested treatment:
- Manual inspection: Gently push the edge of the mud guard to observe if it is loose or makes abnormal sounds; if you hear a "click" sound during driving or feel that there is something swinging in front, it is often an early sign of loosening.
- Tightening and resetting: For slight loosening, promptly go to a professional repair point to reset and tighten the bolts, and it is recommended to replace the snap ring with original factory parts to ensure matching accuracy and durability.
- Replacement and reinforcement: If the bracket has broken or deformed, a new bracket needs to be replaced. For known weak designs, thicker tube walls or reinforced type supports can be considered; those with strong hands can also reinforce the weak areas themselves (such as in the case of the small bull electric vehicle).
Maintenance cycle: For only damage to external components like the fender supports, it is usually repaired within one week; if it involves structural components such as the front longitudinal beams being damaged, the repair may take about one month.
If the support breaks and is not dealt with in time, stones flying off may damage the tires, brake lines or bottom sensors of the vehicle, posing safety hazards. When it comes to key parameters such as bolt tightening torque, it is recommended to follow the vehicle model maintenance manual for operation by professional technicians.
