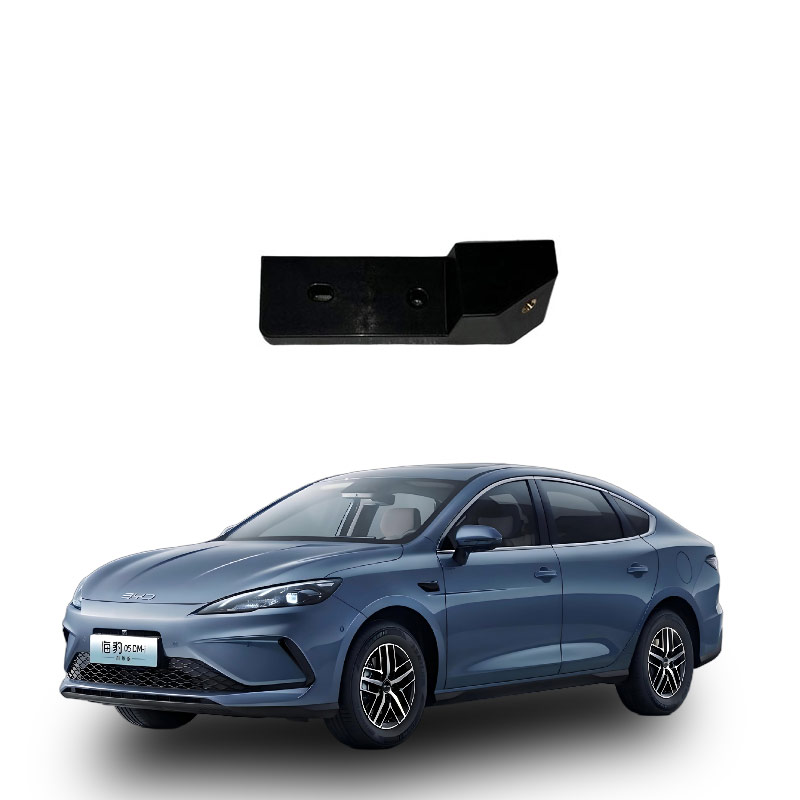

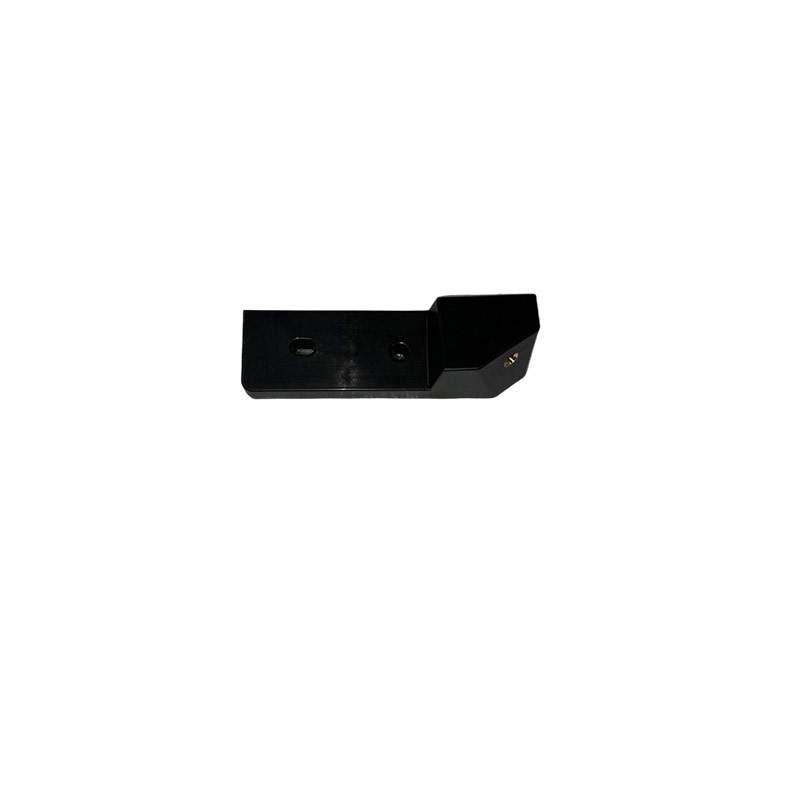

What is the installation bracket for the car's combined rear lights?
The installation bracket for the automotive combined tail lights is a structural component that fixes the combined tail lights to the vehicle body, serving as the "connection base" between the tail lights and the vehicle. It not only ensures the stability and non-shaking of the light assembly during bumps and high-speed driving, but also ensures that the light angle and position comply with regulations. It is a crucial component that connects the upper part and links the lower part of the tail light assembly.
The combined tail lights themselves are a complete assembly of various functions such as brake lights, reversing lights, turn signals, rear position lights, and rear fog lights. The bracket is the "framework" that supports this assembly. There are two main forms:
- Independent bracket: The lamp housing is first installed on the bracket, and then the bracket is fixed to the vehicle body sheet metal. This form is commonly seen in modifications, repairs, or for some models.
- Integrated structure: The bracket is directly made inside the tail light assembly housing, serving as the reinforcement structure for the lamp shell. Many original factory lights adopt this design.
Its specific functions are:
- Fixation and shock absorption: A rigid connection between the light assembly and the vehicle body, absorbing road vibrations and preventing the lights from shifting or the light assembly from loosening. Metal brackets usually have better shock absorption performance than plastic ones.
- Adaptation and installation: Different vehicle models have different hole positions, and the dedicated bracket acts as a "transmission device" to ensure that the light assembly can align with the original vehicle installation position.
- Adjustment and positioning: Some brackets have adjustment mechanisms, allowing for fine-tuning of the light angle to ensure compliance with the illumination range and height.
- Auxiliary function integration: Some brackets also integrate license plates or installation holes, such as the patent for the drop-type tail light bracket by Foton Daimler, which integrates the license plate and the tail light bracket into one.
It is important to note that the tail light bracket and the tail light assembly are two separate things. If the lamp housing is damaged or the snap-in parts break, many vehicles can replace the bracket or the housing separately, which is much cheaper than replacing the entire assembly; however, if it is an integrated structure, the housing and the light assembly, wiring are all integrated, and the entire assembly must be replaced together.
The core function of the automotive combined tail light installation bracket is to securely connect the tail light assembly to the vehicle body, ensuring accurate light angles and driving safety. It is not just a simple fixing component but also has functions such as shock absorption, adjustment, and adaptation.
Key Reminder
Material is very important: Metal brackets such as aluminum have better heat dissipation and can extend the lifespan of the lamp; plastic brackets are more prone to loosening or deformation under long-term vibration.
High installation accuracy is required: The holes and inclination angles of the brackets need to be strictly matched with the vehicle body. Excessive deviation will not only cause abnormal sounds but also result in lighting angles.
Regular inspection： During daily maintenance， the fixed state of the brackets should be checked to avoid screws loosening and causing the lamp to tilt or fall off.
