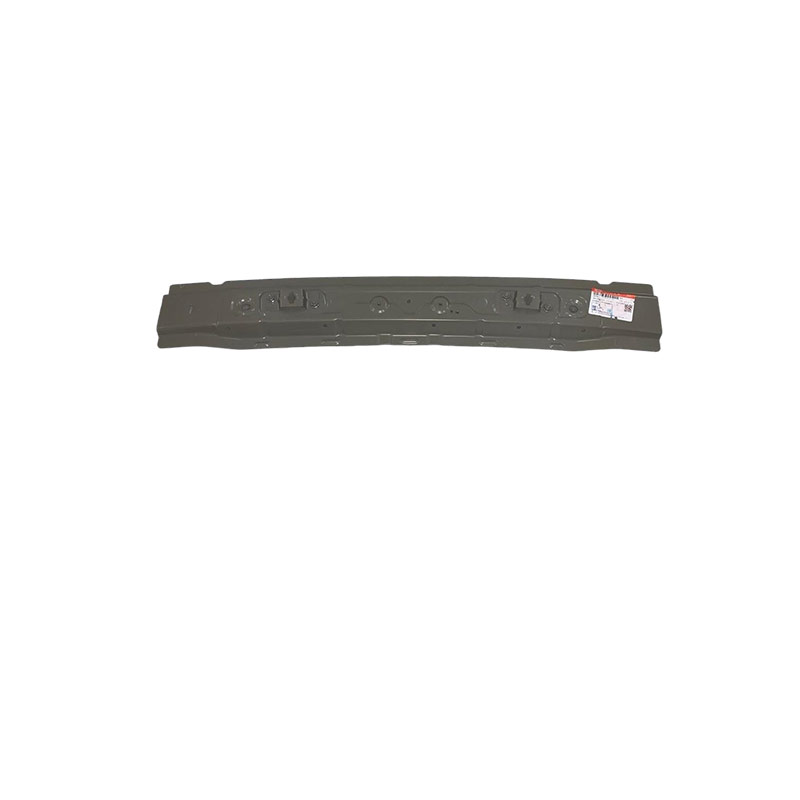

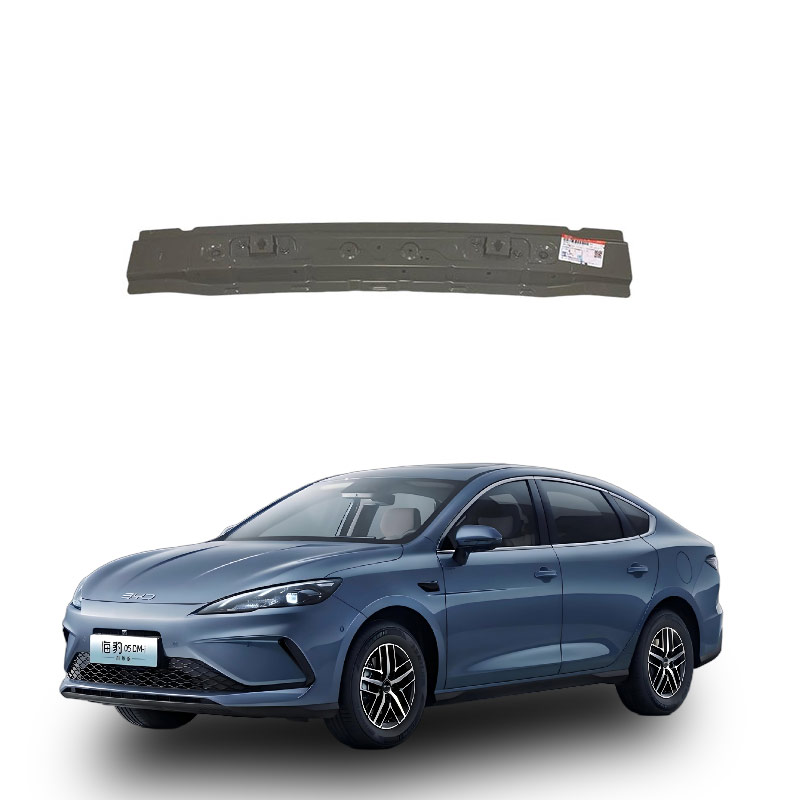

What is the front crossbeam assembly of a car?
The front crossbeam assembly is a horizontal load-bearing structure that connects the left and right longitudinal beams at the front of the vehicle body. It is mainly used to enhance the rigidity of the frame, withstand longitudinal loads, and absorb and distribute impact energy during a collision.
The specific form and function of this assembly may vary slightly among different vehicle models. It can be understood from the following aspects:
Location and main function
Location: Positioned behind the front bumper at the front of the vehicle, it horizontally connects the two front longitudinal beams and is an important horizontal structure within the engine compartment.
Core functions:
Enhancing rigidity: It significantly improves the torsional stiffness of the frame, making the vehicle more stable.
Withstanding and supporting: It withstands the longitudinal loads from the front and supports components such as the bumper and radiator.
Collision energy absorption: During a frontal collision, it and the energy absorption box work together to absorb a portion of the collision energy, protecting the passenger compartment.
The components and common types of the front crossbeam assembly are not just a single beam; they are usually an assembly that may include the following parts:
Beam body: The main structure, commonly made of high-strength steel or aluminum.
Energy absorption box: The key component connecting the beam and the longitudinal beams, which collapses first to absorb energy during a collision.
Installation bracket: Used to fix surrounding parts such as the battery and radiator.
In simple terms, the front crossbeam assembly is a broader concept. The front impact beam can be regarded as a sub-functional module of it that is located at the front and is responsible for low-speed collision protection.
A few additional points:
In recent new vehicle models, the design of the front crossbeam assembly has become increasingly sophisticated. For example, a new patent of a certain brand of Foton Motor has made the front cabin crossbeam assembly into a one-piece composite material structure that integrates the battery installation function. The goal is to be lighter, stronger, and more corrosion-resistant. In high-end vehicle models, the thickness and coverage of the aluminum front impact beam are often used to measure the quality of the material.
The main function of the vehicle's front crossbeam assembly is to enhance the vehicle's rigidity and ensure collision safety. It connects the left and right front longitudinal beams to form the horizontal supporting structure at the front end of the engine compartment.
Specifically, it performs the following key functions:
Withstanding and distributing loads: Enhancing the torsional stiffness of the frame, withstanding longitudinal loads from above, below, and in front of the vehicle, and distributing the road impact and collision forces to the vehicle frame to avoid excessive stress in a certain area.
Collision energy absorption and collapse: During a frontal collision, it collapses controllably to absorb a portion of the collision energy, and works with the energy absorption box to form a secondary protective barrier to protect the passenger compartment and the occupants inside.
Supporting surrounding components: Providing installation support for components such as the front bumper and radiator, and connecting the wheels to the vehicle body to assist the suspension system in transmitting road impact forces.
It should be noted: The front crossbeam assembly is usually an integral structure, but in different vehicle models, it may be associated with components such as the front suspension crossbeam or front frame crossbeam, and the specific structural form depends on the actual vehicle.
Common faults of the vehicle's front crossbeam assembly usually require determining whether to repair or replace, with the key being the degree of deformation and whether it affects the energy absorption structure. Minor deformations can be corrected and repaired, while severe deformation or wrinkles and fractures must be replaced, otherwise it will directly affect driving safety.
Determine the impact of the fault first
The front crossbeam is the core load-bearing and collision energy absorption component of the vehicle's front section. Once deformed, the impact is not just about the appearance:
Safety performance degradation: The energy absorption efficiency usually decreases by 20%-30% after deformation, increasing the risk of occupant compartment intrusion during a secondary collision.
Driving stability deterioration: It can cause deviations in the four-wheel positioning parameters, steering wheel deviation, and rapid tire wear.
Associated damage: It may affect related components such as the front suspension system and steering system, and a comprehensive inspection is required.
How to choose the repair plan
Based on the degree of deformation, handle it in different ways:
Mild deformation (bending ≤ 30°): This can be repaired by the method of stretching correction, combined with laser calibration. After the repair, re-test the four-wheel alignment parameters. This solution is relatively cost-effective.
Moderate deformation (not broken but severely damaged): Consider local reinforcement. Wrap and reinforce the deformed area with steel plates or steel tubes. However, be aware that this may affect the original impact absorption performance of the vehicle, and there is a certain risk.
Severe deformation (wrinkling, breaking): Must replace the original factory front crossbeam assembly. After welding, confirm the quality through X-ray inspection. Do not attempt to repair the severely deformed front beam; this will result in insufficient vehicle rigidity.
Key points to note
Immediate stop and inspection: After discovering that the front crossbeam is deformed, you should stop driving immediately and send it to a professional repair shop for a comprehensive inspection as soon as possible. Do not continue driving with potential hazards.
Choose the right repair facility: It is recommended to choose a repair facility with Class II qualifications or a 4S store to ensure that the craftsmanship meets safety standards.
Re-inspection after repair: After the repair, a four-wheel alignment and road test are required to check the driving stability and steering flexibility. It is recommended to have the chassis parameters re-inspected every six months.
Impact on the value of used cars: Vehicles with deformed front beams are generally valued 15%-25% lower in the second-hand market than normal vehicles. If they are determined to be accident vehicles, the depreciation will be even greater.
In addition, if your car is a Beijing Benz domestic E-Class or GLC SUV, and the production date is within a specific range, there may be a recall issue with the connection sleeve of the traction ring of the front crossbeam having an unqualified size. It is recommended to check if it is within the recall range and have it inspected and replaced for free.
