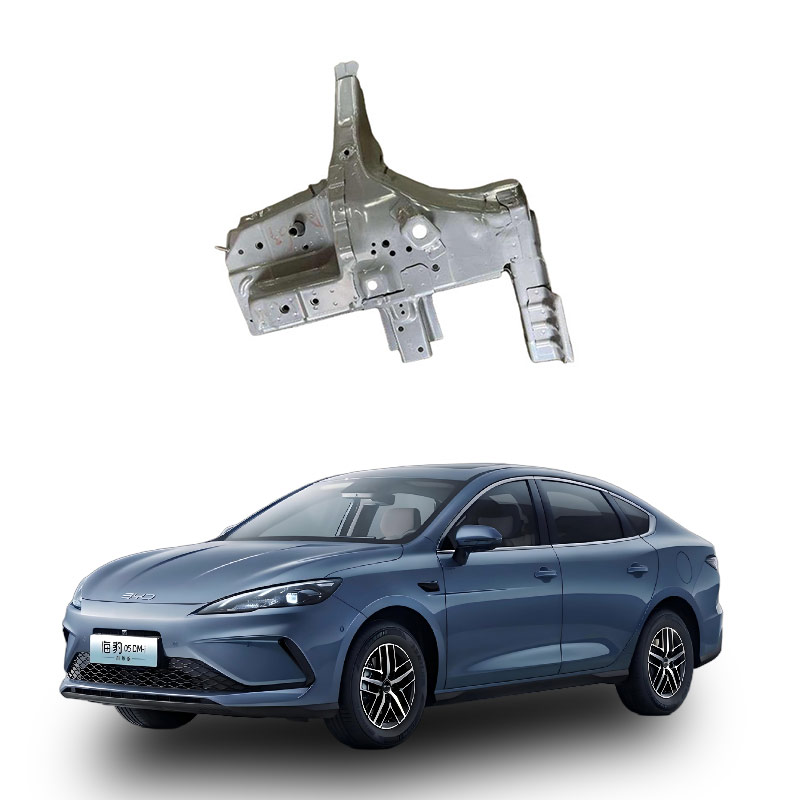

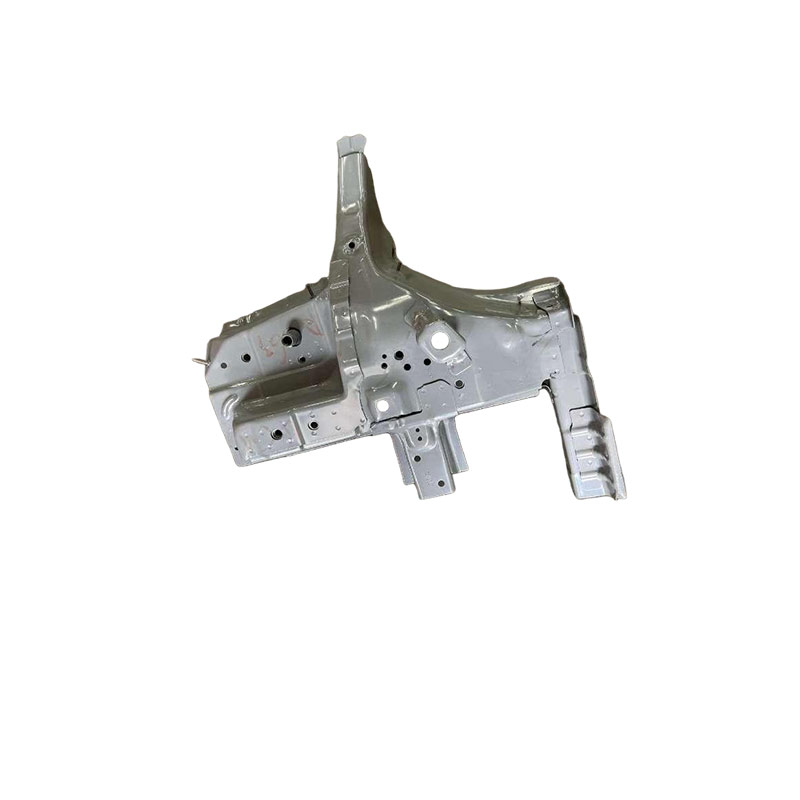

What are the rear components of the left front longitudinal beam of the car?
The rear part of the left front longitudinal beam of the car is mainly welded and connected to the front panel (the partition between the engine compartment and the passenger compartment). At the same time, reinforcing plates, connecting plates and other structural components are also installed to transfer loads and fix surrounding parts.
Specifically, the assembly components involved at this position include:
Front panel: The rear end of the longitudinal beam is directly welded to the front panel assembly. This is the main connection object, bearing the transmission of longitudinal and lateral loads.
Reinforcing plate: In the slot of the front longitudinal beam's rear section, reinforcing plates for the front, middle and rear will be welded, enhancing local stiffness and energy absorption capacity during a collision.
External connection plate: There are dedicated external connection plates at the rear sections of the left and right front longitudinal beams, which are independent stamped parts, used for the connection between the longitudinal beam and the surrounding structures.
In addition, the rear part of the front longitudinal beam also bears the function of supporting the front suspension and steering system, and has installation holes for fixing the engine assembly and accessories. The specific structure of different models may vary, and when repairing or replacing, the actual disassembly should be followed.
The assembly components of the rear part of the left front longitudinal beam of the car have the core function of receiving collision forces and distributing the impact, as well as connecting the vehicle structure to ensure the safety of the passenger compartment. The front longitudinal beam itself is a key component for bearing the vehicle and absorbing energy during a collision, while the rear area is the "hub station" for transferring collision energy to the vehicle body.
Specifically, the assembly components in this area mainly do the following:
Transmit and distribute impact forces: During a frontal collision, after the front end of the longitudinal beam collapses to absorb energy, the remaining impact force will be dispersed through the rear assembly components to the front panel, the floor beam and other vehicle structures to avoid excessive local stress. The patent newly applied by Geely is to optimize the mating parts and reinforcing structure at the rear end of the front longitudinal beam to enhance the ability to transmit and distribute impact loads during a collision.
Connect key vehicle structures: The rear end of the front longitudinal beam is generally welded to the front panel (the partition between the engine compartment and the passenger compartment), forming a firm connection to ensure the overall rigidity of the vehicle body.
Maintain the shape of the passenger compartment: The reinforcing beams or strengthening structures in the rear area can maintain the shape of the passenger compartment during a collision, reducing the intrusion of the firewall and protecting the safety of the occupants.
It should be noted that this area belongs to the vehicle structure components. If repaired or replaced, high welding technology and part precision requirements are necessary. If the assembly components are damaged, it is essential to repair them with original or qualified parts at a professional repair shop; otherwise, it will directly affect the collision safety of the vehicle.
Faults in the assembly components of the rear part of the left front longitudinal beam of the car will significantly reduce the vehicle's safety performance and handling stability, and the vehicle will be recognized as an accident vehicle.
Failure impact
Safety reduction: The longitudinal beams are the main energy-absorbing components during a collision. After repair or replacement, their strength cannot reach the original factory level. When subjected to another collision, the energy absorption effect will deteriorate, and the impact force is more likely to be transmitted to the passenger compartment.
Handling deterioration: The rear part of the left front longitudinal beam is connected to the front panel and suspension components. Position deviation can cause inaccurate four-wheel alignment, resulting in steering deviation, uneven tire wear, and abnormal noise during driving.
Component chain reaction: This area is close to the engine foot and the sub-frame fixation point. Improper assembly can change the relative position of the engine and the transmission, generating additional stress, causing body vibration or noise.
Handling suggestions
Perform precise detection first: Use professional equipment (such as X-ray or magnetic particle detectors) to confirm the degree and location of deformation, and determine whether repair or replacement is necessary.
Prioritize repair over replacement: Minor deformations can be corrected through adjustment, while severe deformations or fractures should be considered for replacement of the longitudinal beam section.
Choose a professional repair shop: It is necessary to go to a regular 4S store with a beam correction instrument or a repair shop with Class II or above qualifications. Ordinary small shops do not have sufficient equipment and technology, and are prone to leaving hidden dangers.
Check surrounding components: Focus on checking if the engine foot, sub-frame fixation point, and suspension arm connection points are deformed. These positions directly affect driving quality.
If the deformation is severe and there are still abnormal noises, steering deviation, etc. after repair, it indicates that the maintenance quality is not up to standard, there are potential safety hazards, and it is necessary to rework or consider replacing the assembly. The price of such vehicles will also significantly decrease when resold.
