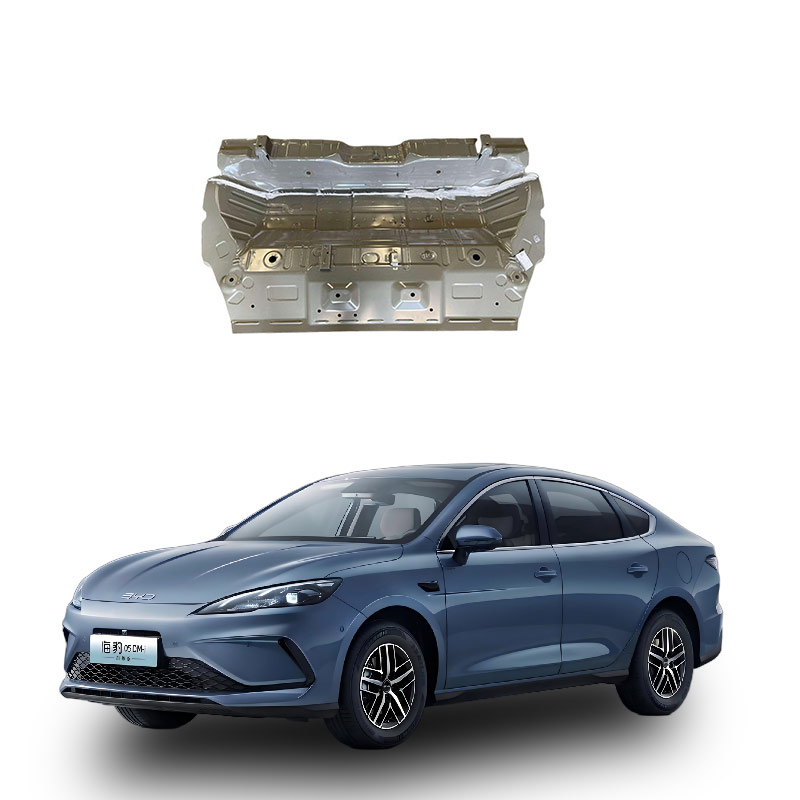

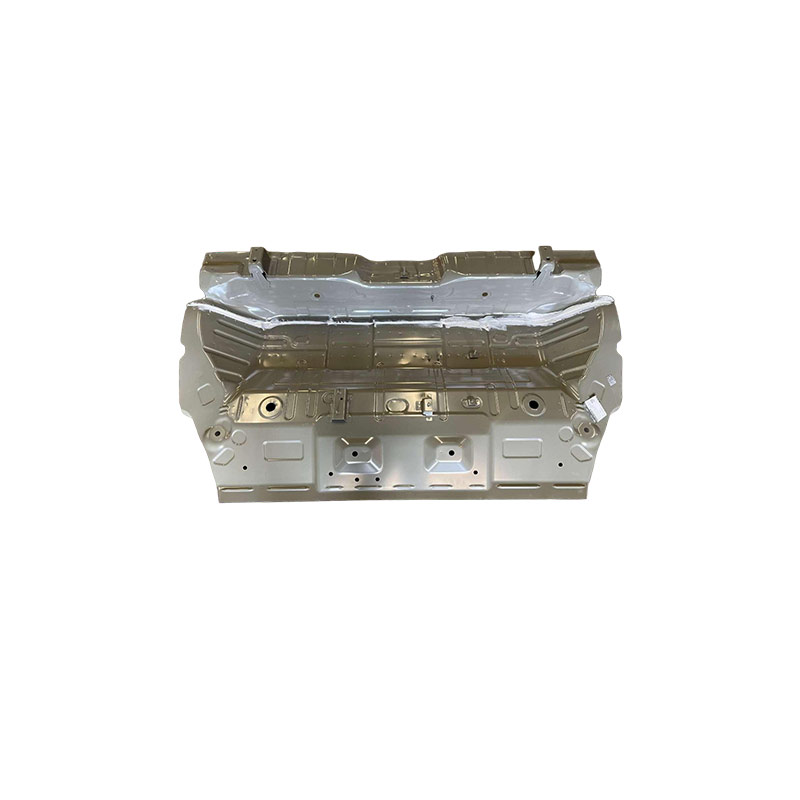

What is the mid-size floor panel assembly of a car?
The mid-size floor panel assembly of a car is simply the assembly of panels that form the main surface of the vehicle floor. It is a key part of the vehicle's bottom structure.
Specifically, it can be understood from the following aspects:
What is it
According to the "Mechanical Engineering Terminology", the floor panel is defined as "the main surface panel that constitutes the vehicle floor", which is a professional term in the field of mechanical engineering.
It is part of the floor assembly. The floor assembly includes floor beams, floor panels, rear fender panels, etc., and is generally composed of the front floor, (middle floor), and rear floor.
"Mid-size" usually refers to the vehicle level or the size of the floor structure. In automotive engineering, there is no unified strict definition. Generally, it corresponds to the floor panel assembly of mid-sized sedans or SUVs.
Structure and composition
From the perspective of the vehicle structure, the floor panel is directly welded to the crossbeams and longitudinal beams at the bottom of the vehicle, forming the foundation structure of the passenger compartment, and is one of the core guarantees of vehicle rigidity and crash safety.
Take a patent of Changan Automobile as an example, the front floor assembly includes the floor body (including the middle channel plate and the floor panels symmetrically arranged on both sides) and the seat crossbeam.
The panel assembly of the rear floor mainly bears the weight of the rear passengers, and the cavity formed by the components can also transfer energy and absorb noise, improving the interior quietness.
Materials and processes
Traditionally, high-strength steel is used for stamping and welding, including high-strength steel, ultra-high-strength steel, and even hot-formed steel.
Under the trend of lightweighting, aluminum (such as 5000 series or 6000 series) is increasingly widely used. The manufacturing processes include hydraulic forming, warm stamping, and extrusion forming of profiles.
Modern design also introduces the "integrated die-casting" process, such as Tesla Model Y reducing the rear floor parts from 70 to 1, and the Yuedai M9 reducing 222 parts to 10 using a 9000-ton die-casting machine.
Core function
Load-bearing and supporting: As the main load-bearing component of the white body, it supports the vehicle body, opening and closing parts, accessories, and the weight of the occupants, and withstands the loads, vibrations, impacts, and torques during driving.
Crash safety: The floor structure layer is an important component of the vehicle's crash force transmission path, and it is necessary to ensure that the impact force can be dispersed and absorbed along the preset path to protect the passenger compartment integrity.
NVH performance: The design of the floor panel directly affects the noise, vibration, and sound insulation roughness (NVH) performance of the vehicle, and often improves it through structural optimization and the arrangement of damping materials.
In simple terms, it is the "skeleton panel" of the vehicle bottom, which needs to be strong enough to withstand crashes, be lightweight, and also need to take into account sound insulation and noise reduction, and is a component with strict requirements in vehicle engineering.
The mid-size floor panel assembly of a car usually refers to the floor panel itself and various strengthening structures welded together. The core includes the following types:
Panel body
Front floor panel: The main panel at the bottom of the passenger compartment in the front row, often with reinforcing ribs (with a depth of 5 to 10 mm) to enhance stiffness.
Middle floor panel: Located between the front and rear floors, the main area of the passenger compartment.
Rear floor panel: The main panel at the bottom of the trunk, including the rear floor frame assembly and the rear floor panel assembly, etc.
Lateral beams (central channel): Stretching along the front and rear direction, accommodating the transmission shaft or exhaust pipe, and in some models, used for installing hydrogen tanks, etc.
Inner floor panel assembly: Including inner floor panels, floor panel strengthening plates, seat belt installation strengthening plates, etc.
Side beams and strengthening beams: Front floor left and right side beams, left and right lower rear strengthening beams, etc.
Other related components
Front panel assembly: Separates the cabin from the passenger compartment and is often assembled in conjunction with the floor assembly.
Torsion box: Located on both sides of the front reinforcement plate, it connects the front structure.
Overall, the floor panel assembly is the main load-bearing component of the body-in-white. Its design needs to balance strength, stiffness, lightweight, sealing performance, and NVH performance. Besides traditional steel plates, aluminum, integrated die-casting, and carbon fiber composite materials are increasingly being used.
