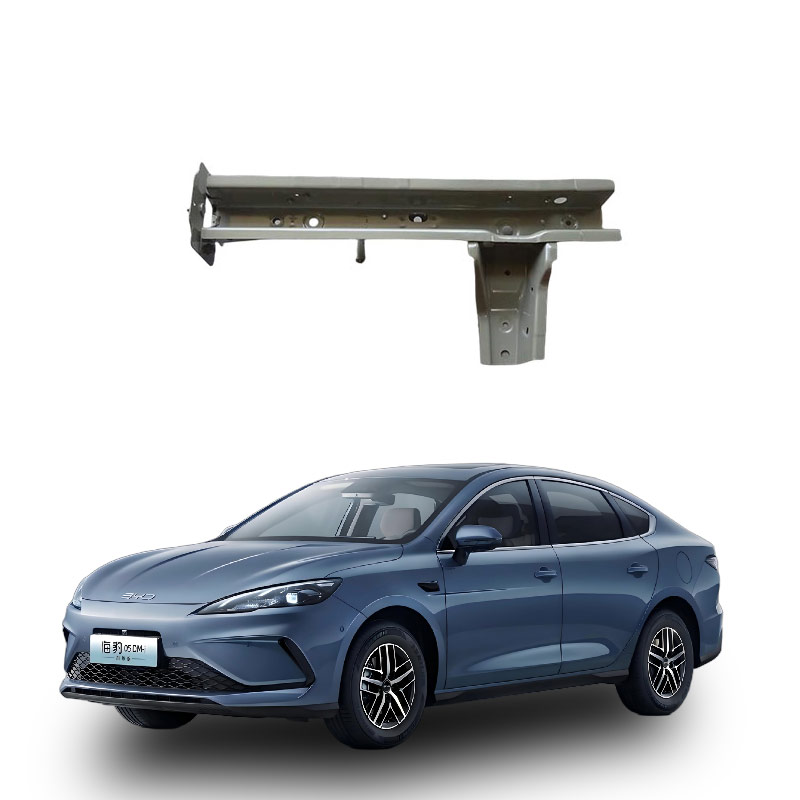

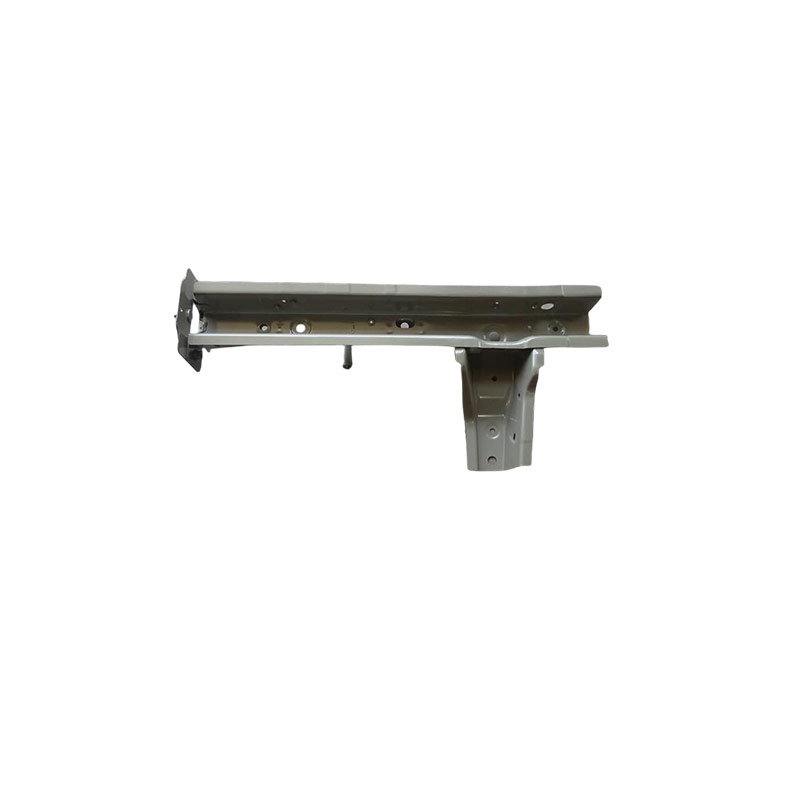

What is the rear end assembly of the left rear longitudinal beam of the car?
The rear end of the left rear longitudinal beam is mainly assembled onto the rear panel and is connected to the vehicle floor, rear floor, and other structures. It is a key node for the vehicle's rear load-bearing and collision energy absorption.
Specifically, the left rear longitudinal beam extends from beneath the trunk floor panel along the spare tire groove towards the front and rear. Its rear end is usually connected to the vehicle rear panel and is welded with the vehicle floor, rear fender, and other components to form a closed frame. In some vehicle designs, the rear end of the longitudinal beam is also connected to the outer panel of the rear fender, rear bumper bracket, and rear suspension through connection flanges or joints, serving to support the rear of the vehicle and transfer collision loads.
When viewing this position in a repair scenario, the rear end of the left rear longitudinal beam is generally located at the rear of the trunk interior, near the tail lights or rear bumper, and often has welding points or installation holes connected to the rear panel and floor.
The rear end of the left rear longitudinal beam is a key load-bearing node that connects the vehicle floor, rear panel, and mounting plate, mainly for transmitting loads and absorbing energy during rear-end collisions.
Specifically, it performs the following core functions:
- Load-bearing and connection: The front end is connected to the vehicle body, the rear end is coordinated with the rear panel, and it is connected to the vehicle floor through the mounting plate, firmly transferring the rear load to the entire vehicle.
- Collision safety: During rear-end collisions, it works in conjunction with the impact frame and energy absorption box, absorbing impact energy through its own deformation to protect the passenger compartment, fuel tank, battery pack, and other critical components.
- Structural support: It provides an installation foundation for components such as the rear suspension system, rear bumper bracket, and rear suspension, ensuring the dynamic stability of the vehicle's rear during braking and bumpy road conditions.
The left rear longitudinal beam is a structural component of the vehicle body. If it has been repaired, the strength after restoration usually cannot fully reach the original factory level, which will affect collision safety and requires special attention.
Regarding the assembly failure of the rear end of the left rear longitudinal beam, the core principle is: official repair technical specifications from the manufacturer must be provided, and the cutting and welding plan cannot be decided based solely on available orderable parts. The rear longitudinal beam is the core load-bearing structure of the vehicle body. Once it involves cutting and welding, the repair process and safety requirements are extremely high, directly affecting the safety and residual value of the vehicle in the future.
Key Judgments and Basis
- Do not accept repair plans without technical basis: In a real case, a 4S store planned to cut and weld a hot-formed steel longitudinal beam based on "being able to find parts", but the owner consulted the official repair specifications from the manufacturer and received no response, resulting in a blocked维权. This "part-based decision-making" approach lacks the technical endorsement of the original equipment manufacturer and should not be used as a repair basis.
- Strictly follow the original factory process for cutting and replacement： As a structural component， if it needs to be cut and replaced， it must be precisely positioned using a beam alignment instrument and welded using original factory processes to ensure welding strength. The repair institution must have at least Class II qualifications； otherwise， it may lead to a decrease in vehicle rigidity.
- Feasible handling paths
- First， obtain official repair basis： Request a written explanation from the manufacturer's customer service or 4S store regarding the "standard cutting and replacement sections" in the official repair manual for the left rear longitudinal beam of this model to confirm whether the damaged area is within the allowable cutting range.
- Assess the long-term impact of cutting and replacement：
- The repair strength is usually slightly lower than the original factory state.
- The welding area may become a source of rust， cracks， or abnormal sounds in the future， and regular inspections are required.
- The vehicle will be classified as "structural component damage"， affecting the residual value of used cars.
- Set a decision bottom line： If the repair cost exceeds 30% of the current vehicle value or the vehicle is approaching the scrap age， a careful consideration of the repair cost-effectiveness is necessary. If the damage is severe (such as a 90-degree bend)， the manufacturer should clearly indicate whether it is a local replacement， replacement of the entire white body， or a recommendation for total loss.
Risk Warning
Even if the rear longitudinal beam is repaired, its collision energy absorption and vehicle rigidity will be difficult to fully return to the original factory state, which may affect the safety of the occupants in subsequent collisions. After the repair is completed, it is necessary to conduct four-wheel alignment and overall safety inspection, and pay attention to any abnormal sounds or control abnormalities during future driving.
