What is the buffer block in the front compartment of a car?
The "front cabin buffer block" of a car is not a single standard component. It needs to be differentiated in function and definition based on the specific installation location:
Two common types of front cabin-related buffer blocks

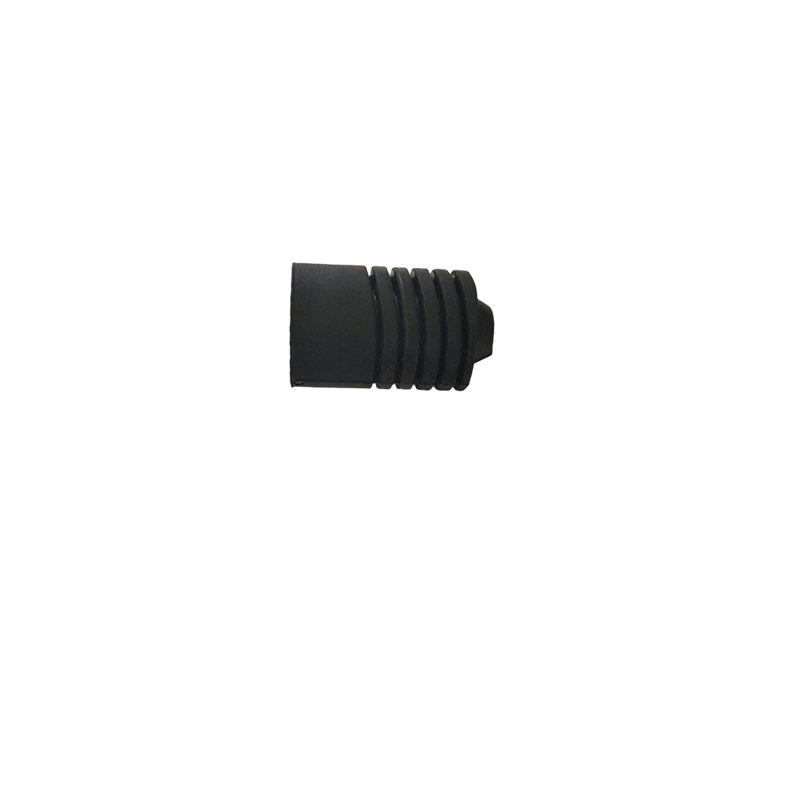

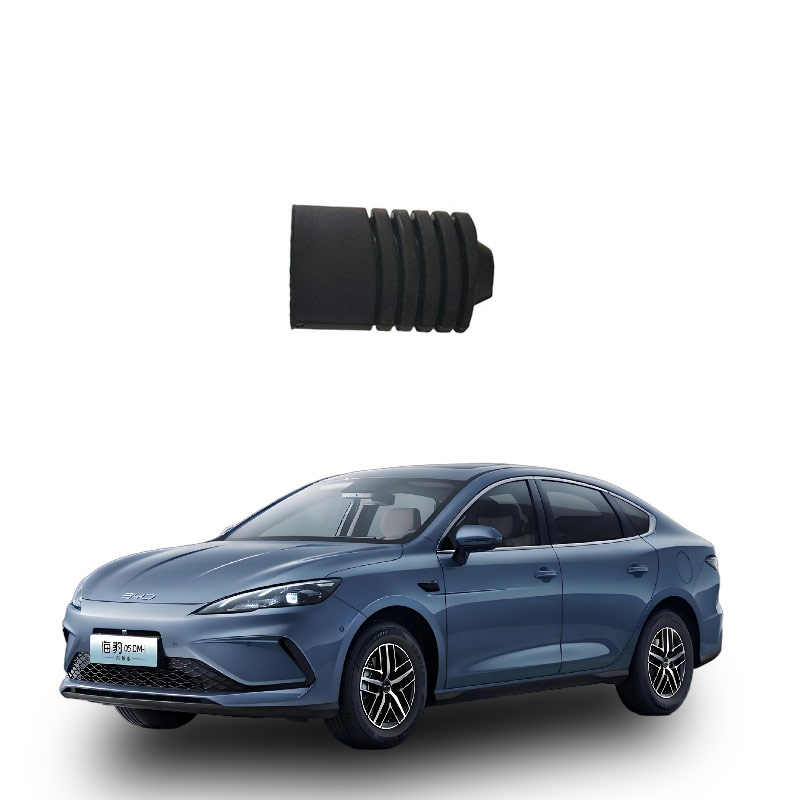

Engine hood limit/locking buffer block (most often referred to by car owners as "front cabin buffer block")
Location: Near the engine hood latch or on the side brackets of the cabin (usually 2 adjustable rubber cylinders).
Function:
Absorb the impact when the engine hood closes, preventing hard collisions between the latch and causing abnormal sounds or paint peeling;
Adjust the height to control the closing force and gap of the hood, avoiding scratches on the fenders or closing too tightly;
Some models also have auxiliary functions such as water diversion and sealing assistance.
Material: High-density closed-cell sponge, weather-resistant rubber or polyurethane; prone to hardening, cracking, and falling off after aging.
Front suspension shock absorber buffer block (commonly known as "shock absorber rubber block", located at the bottom of the cabin/axle well)
Location: At the top of the shock absorber piston rod, inside the spring or on the side, part of the suspension system.
Function:
Limit the maximum upward movement of the suspension to prevent the shock absorber piston from "bottoming out" and the spring from overlapping;
Absorb the impact load during extreme bumps to protect the shock absorber gasket and reduce metal impact sounds;
Improve comfort and handling stability.
Material trend: Modern models mostly use multi-cell polyurethane (light weight, good nonlinear buffering, and resistant to aging), gradually replacing traditional rubber.
Fault signals and precautions
Aging manifestations: Cracking, chalking, adhesion, loss of elasticity → Trigger "clicking" abnormal sounds, hood not closing properly, metal impact sensation when hitting potholes.
Replacement suggestions:
Engine hood buffer block: Manually adjust the height or replace with the same specification part, pay attention to symmetry on both sides;
Shock absorber buffer block: It is recommended to replace synchronously with the shock absorber, choose original factory or certified brands to avoid being too soft (insufficient support) or too hard (no buffering).
Note: Some non-professional materials refer to door anti-collision glue, bumper energy-absorbing blocks, etc. as "buffer blocks", but they do not belong to the core functional components of the cabin.
The "front cabin buffer block" of a car usually refers to two different components and needs to be distinguished by installation location:
Engine hood (hood) buffer block (most common context)
Location: The contact area between the hood and the fender/wheel arch, or near the latch.
Core function:
Shock absorption and noise reduction: Absorb the impact when the hood closes, preventing metal hard collisions from causing "clack" sounds; suppress cabin resonance noise during driving.
Protect paint and structure: Prevent excessive opening and closing of the hood from causing excessive hinge load, edge paint peeling or sheet metal deformation.
Auxiliary sealing and drainage (in some models): Cooperate with the water collection plate rubber strip to guide rainwater out, reducing water vapor infiltration into the cabin (such as Volkswagen models).
Stabilize hood posture: Suppress minor tremors of the hood at high speeds or specific rotational speeds.
Failure manifestations: Emptying when closing, clicking abnormal sounds, uneven hood gaps, and unpleasant smell of water accumulation in rainy weather.
Material and lifespan: Mostly high-density closed-cell sponge/polyurethane rubber, resistant to temperature and weathering; recommended to check every 3–5 years, and replace when aging hardening or cracking occurs.
Suspension/shock absorber system front buffer block (less called "cabin", but part of the front chassis)
Location: Inside the shock absorber or beside the spiral spring, connecting the vehicle body and the suspension.
Core function:
Limit the maximum travel of the suspension: Prevent the spring from compressing to the bottom due to potholes, causing hard impacts.
Protect the shock absorber: Absorb extreme bump energy, extend the lifespan of the gasket and spring.
Improve comfort: Filter high-frequency vibrations, reduce the impact sensation transmitted to the vehicle body.
Note: This component is generally not located within the visible range of the "engine compartment", it belongs to chassis components.
The "front cabin buffer block" asked by daily users mostly refers to the "engine hood buffer block"; if it involves abnormal sounds when passing over speed bumps or loose suspension feeling, it may refer to the "front shock absorber buffer block". The materials (sponge vs. polyurethane solid block) and functional scenarios of the two are completely different. When replacing, it is necessary to confirm the specific position and compatibility with the vehicle model.
