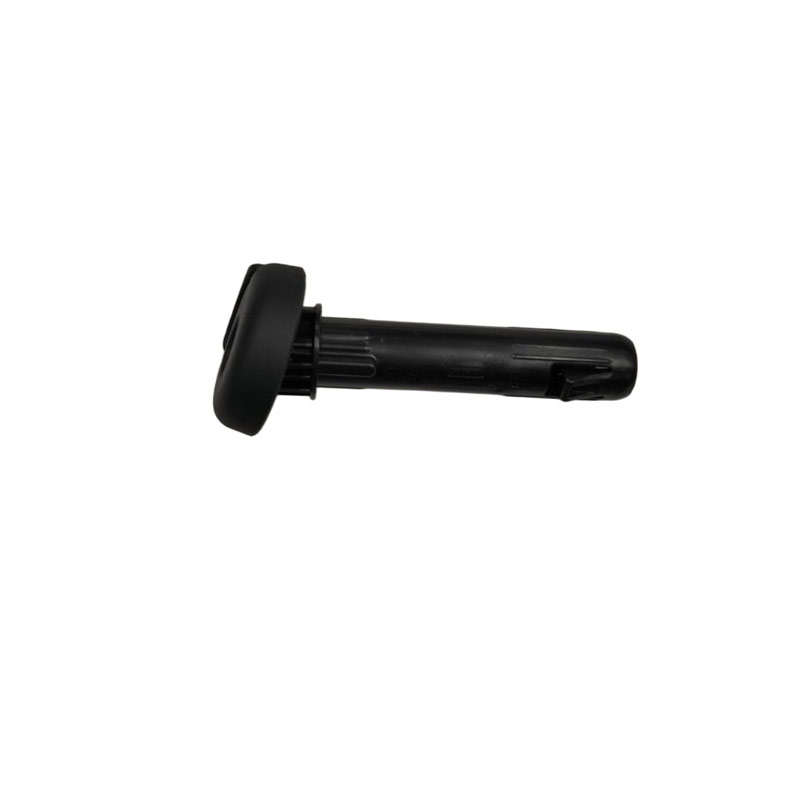

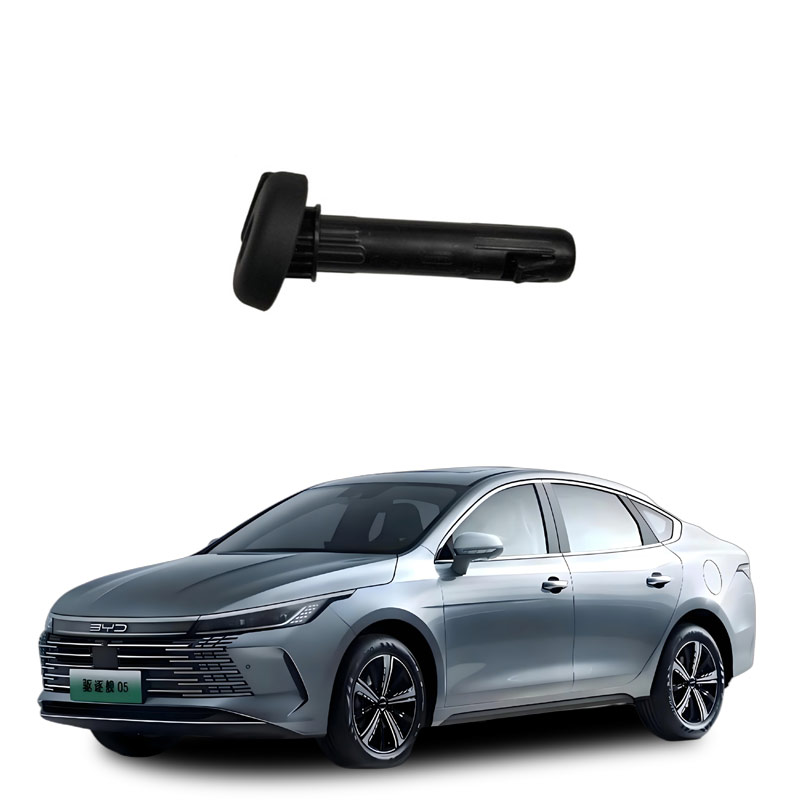

What is the height-adjustable sliding sleeve assembly for the headrest in the rear seat of a car?
The rear headrest height adjustment sliding sleeve assembly is a key mechanical component used to achieve the height adjustment of the headrest. It is typically installed at the connection point between the headrest support rod and the seat backrest. It enables up-and-down sliding through a sliding fit and locks in the adjusted position after the adjustment is completed.
According to public information, the core functions and structural characteristics of this component are as follows:
Main function: Allows passengers to adjust the height of the headrest according to their height, aligning the center of the headrest with the upper edge of the ears, to effectively protect the cervical spine during a collision and reduce the risk of whiplash .
Typical structure:
Includes a sliding sleeve (slide block), which is fitted onto the headrest support rod and can slide on the fixed rod;
Equipped with a locking mechanism (such as a latch, spring pressure block, pin, etc.), used to fix the position after adjustment ;
The support rod is usually a steel frame, ensuring strength and durability ;
Most high-end models adopt multi-angle adjustment or electric adjustment, but most rear seats still have manual adjustment .
Common adjustment methods
Press-release button type: Press the button on the side or bottom of the headrest, release the lock, slide up and down to the appropriate position, and then release to automatically lock ;
Continuous friction adjustment: Achieves any height positioning relying on the static friction between the sliding sleeve and the support rod, without the need for a button ;
Pin positioning type: Adjusts by inserting pins into different height holes, but the adjustment step is fixed, and the flexibility is low . Notes for Attention
The headrests at the rear of the vehicle have been classified as standard safety devices in most national regulations and cannot be removed at will.
When adjusting, ensure that the sliding sleeve is fully locked to avoid loosening during driving and affecting safety.
If the sliding sleeve gets stuck or cannot be locked, it may be necessary to replace the sliding sleeve component or the entire headrest adjustment mechanism.
The height adjustment sleeve component of the rear headrest of a car mainly functions to achieve continuous or stepped adjustment of the headrest height to ensure that the headrest is in the optimal protection position. This component is usually composed of a sliding sleeve, a latch or a ratchet mechanism, a spring, etc., and is installed between the headrest pillar and the seat back. Core function
Height adjustment: Press the sliding sleeve to release the latch, then slide the headrest up and down to the desired height. Release the latch to lock it in place.
Safety fit: Align the center of the headrest with the upper edge of the passenger's ears (the ideal position). This effectively limits head retraction in rear-end collisions and reduces the risk of whiplash injury.
Compliance with regulations: According to China's mandatory national standards, all front and rear seats of passenger vehicles must be equipped with headrests and must have adjustment functions to accommodate different height passengers.
Adjustment suggestions
To achieve maximum protection, the headrest should be adjusted to:
- The middle of the headrest is level with the upper edge of the passenger's ears;
- The top of the headrest is close to or slightly higher than the top of the head;
- The headrest is about 2–5 centimeters away from the back of the head to avoid being too far and affecting the supporting effect. Although this sliding sleeve structure is small, it is one of the key components for ensuring passive safety.
The malfunction of the height adjustment slider component of the rear headrest in a car usually manifests as the inability to adjust the headrest up and down, sticking, or being unable to lock at a specific height. According to public information, such problems are often related to mechanical clasps, electric adjustment mechanisms, or control circuits. Here are the common causes and corresponding solutions:
Common Causes
Damaged or worn-out clasps: Long-term use leads to the plastic clasps breaking or losing elasticity, preventing the headrest from being fixed at a certain height .
Deformation or accumulation of dust in the slider's internal structure: This affects the smooth sliding of the headrest .
Faults in the electric adjustment mechanism (applicable to electric headrests): Motor, gears, or sensors fail .
Problems with the control module or wiring: Such as SAM control unit, loose wiring, corrosion, etc . Solution
Manual Inspection and Initial Handling
Try gently pulling up and down on the headrest to see if it gets stuck; if it can be moved but not locked, it might be that the latch is faulty.
Clean the dust or foreign objects around the sliding sleeve to avoid hindering the sliding movement.
Replace the latch or sliding sleeve component.
If the latch is damaged, you can purchase a compatible replacement part to replace it yourself, or have it handled by a professional repair person.
Some models support replacing the sliding sleeve component separately, without requiring the entire chair to be replaced.
Electric System Diagnosis (Applicable to Electrically Adjustable Headrests)
Check if the circuit connection between the adjustment button and the control module is normal.
Use a professional diagnostic instrument to read the fault code to determine whether it is a fault in the control module, sensor, or motor.
If it is a luxury brand like Mercedes-Benz, pay special attention to whether the configuration of the rear SAM control unit is correct (such as if the lumbar support pump is not recognized, it may cause abnormal headrest function).
If you cannot solve it by yourself, it is recommended to go to an authorized 4S store or a professional automotive repair shop for inspection and repair to ensure safety and original factory compatibility.
