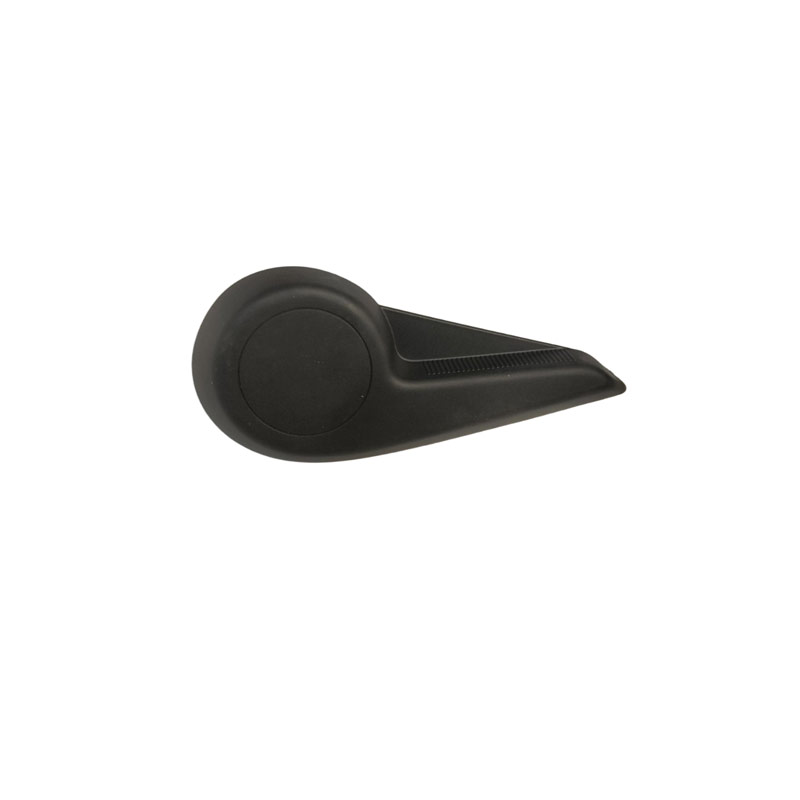

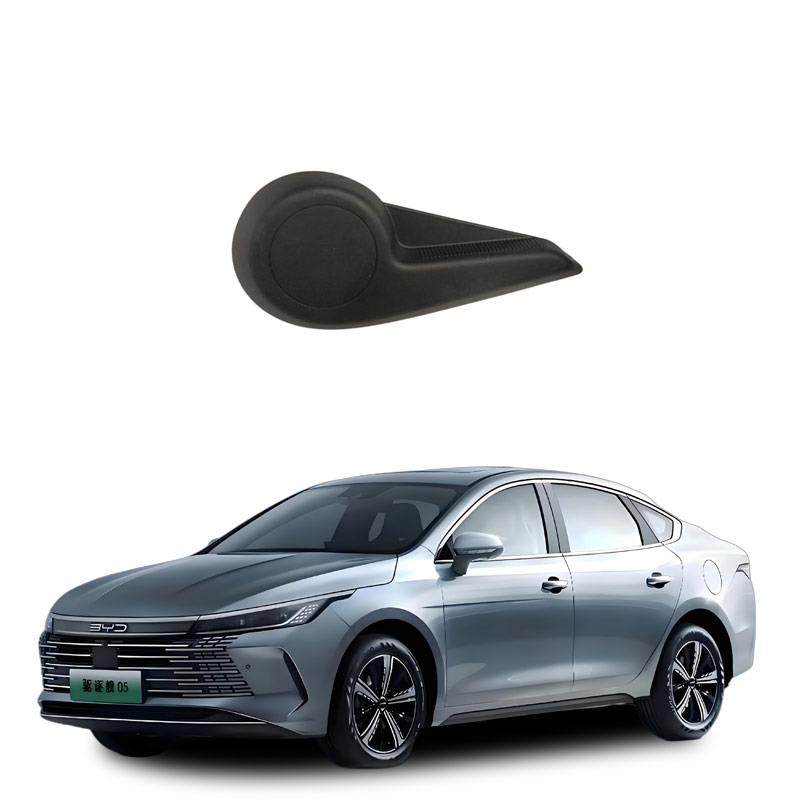

What is the steering wheel adjustment lever for the driver of a car?
The steering wheel adjustment lever is a mechanical device used to adjust the angle of the driver's seat back. It is part of the car seat adjustment system.
Function and Structure
Core Function: By pulling or operating this lever, the backrest locking mechanism is unlocked, allowing the driver to adjust the tilt angle of the backrest to achieve a more comfortable sitting position.
Typical Structure: It is generally composed of a regulating lever, a seat back connection plate, a seat connection plate, a core locking mechanism, and a return spring.
Operation Method (for most manually adjustable models)
Lean your body slightly forward to reduce the pressure on the backrest;
Pull up the adjustment lever (usually located on the left or right side below the seat);
Lean back and adjust the backrest to the appropriate angle;
Release the lever to confirm that the backrest has been automatically locked and is not shaking.
Common Position
Most models have the lever located on the left side below the driver's seat (close to the outer side of the thigh);
Some models may be located on the right side, depending on the brand and model. Notes for Attention
After adjustment, you should try to push and pull the backrest in both directions to ensure that the handle has returned to its original position and the backrest is fully locked, ensuring driving safety;
If it is an electric seat, there may be no physical handle, and buttons can be used for adjustment instead.
The steering wheel adjustment handle for the driver is mainly used to adjust the angle of the seat backrest. In some models, it may also be used for front and rear sliding adjustment. The specific functions depend on the design of the vehicle model. According to the current mainstream public information, its core functions are as follows: Main function
Backrest angle adjustment: By pulling or turning the handle, unlock the backrest locking mechanism, allowing the driver to move forward or backward to adjust the backrest inclination angle; after adjusting to the desired position, release the handle, and the mechanism will automatically lock to ensure driving safety.
Some models support seat front-to-back adjustment: For example, models like Changan UNI-T, on the left side of the driver's seat, there is a horizontal handle for sliding the seat forward or backward.
Operation method (typical)
Backrest adjustment: Located below the left side of the seat, in the shape of a wrench; when operating, lean forward or back, and at the same time turn the handle, adjust to the comfortable angle and then release to lock.
Front-to-back adjustment: If it is a horizontal handle, move it forward or backward to move the seat, and release to stop. Notes for Attention
The position and function of the handle may vary among different brands and models. It is recommended to refer to the vehicle user manual to confirm the specific operation.
The manual angle adjustment handle is a mechanical adjustment structure, commonly found in mid-range or low-end or traditional fuel vehicle models; high-end models mostly use electric adjustment buttons.
Faults of the front passenger seat angle adjustment handle usually refer to the failure of the seat back angle adjustment function, which may be caused by mechanical, electronic or structural problems. According to the current public information, the following are common causes and handling suggestions:
Common Fault Causes
Handle damage or looseness: The manual adjustment handle gets stuck, deforms or the connecting parts fall off .
Internal angle adjuster failure: The internal parts such as gears, racks, springs wear out, lose teeth or get stuck .
Track blockage: Dust or foreign objects get stuck in the seat slide rail or the backrest adjustment mechanism .
Electronic system problems (applicable to electric seats):
Adjustment switch damaged or short-circuited due to water ingress ;
Motor failure ;
Control unit or wiring fault ;
Fuse blown .
Recommended Handling Steps
Initial inspection:
Try to manually adjust to determine whether it is completely inoperable or only difficult to operate;
Observe if there are abnormal sounds, jamming or partial failure.
Simple troubleshooting:
Clean the dust or debris in the seat track or adjustment area;
Check if the fuse in the seat area is blown ;
If it is an electric seat, try restarting the vehicle or resetting the seat memory settings .
Professional repair advice:
Manual seats: If the handle or angle adjuster is damaged, usually the entire angle adjuster assembly needs to be replaced, and for some models, the seat needs to be disassembled for operation ;
Electric seats: It is recommended to go to a 4S store or professional repair point, as it involves circuits, motors and control modules, and self-disassembly poses a higher risk ;
When replacing parts, pay attention to matching the same model to avoid secondary faults due to incompatibility .
