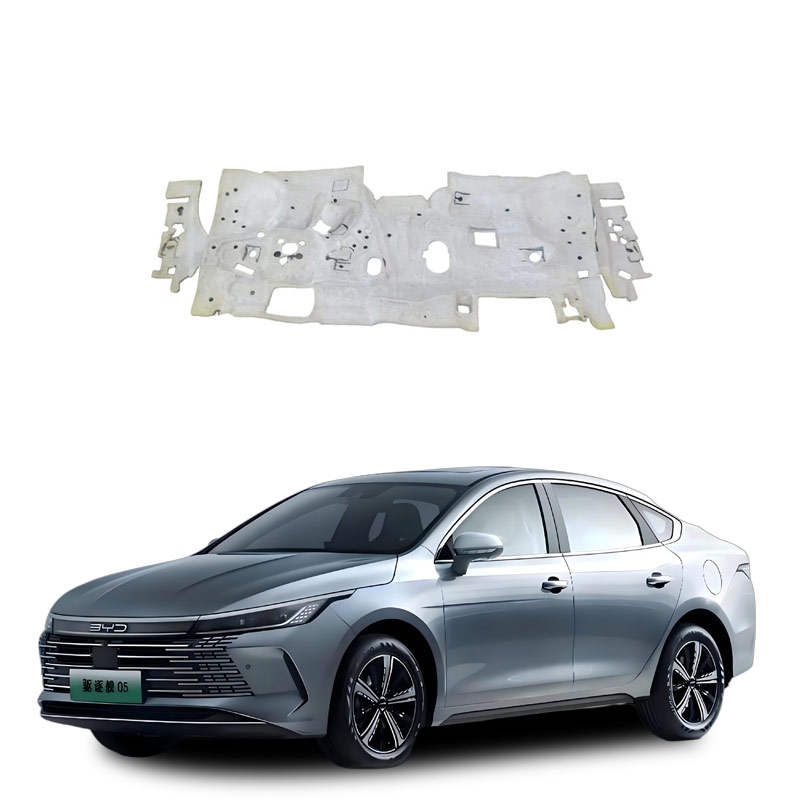

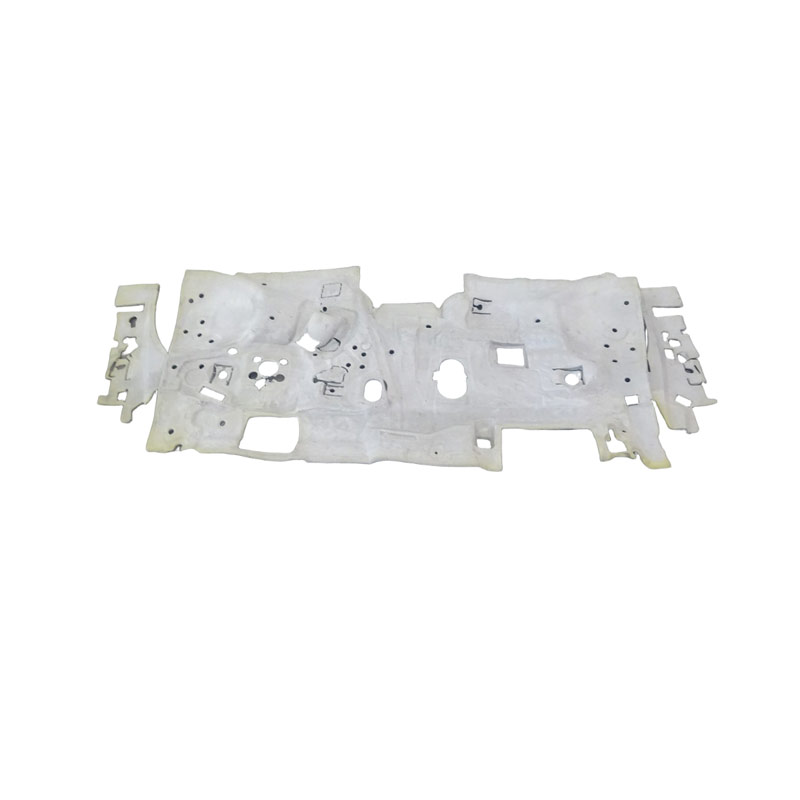

What is the automotive front panel heat insulation assembly?
The automotive front panel heat insulation assembly is a composite structural component installed between the engine compartment and the passenger compartment (i.e., the front panel area), mainly used for insulation, sound insulation, and vibration reduction to enhance passenger comfort and meet environmental protection and safety requirements.
Main functions
Insulation: Prevents the transfer of high temperatures from the engine compartment to the cabin.
Sound insulation: Absorbs or reflects the noise generated by the engine, exhaust system, etc., improving the NVH (noise, vibration, and sound insulation roughness) performance inside the vehicle.
Vibration reduction: Reduces the transmission of low-frequency vibrations, enhancing the riding comfort.
Compliance with environmental regulations: Meets the restrictions on harmful substances in automotive ELV and other regulations.
Typical structural components
According to public information, common structures include the following multi-layer composite materials:
Hard cotton layer + Soft cotton layer: Provides sound absorption and buffering.
Plastic film layer (such as EVA, PE): Acts as a moisture-proof, sealing, or barrier layer.
Foaming layer (such as polyurethane foaming): Enhances insulation and lightweighting.
Connectors (such as glue pins, snap fasteners): Used for fixation on the front panel, ensuring assembly stability.
Some solutions may also incorporate EPDM rubber or recycled sponge to form a density gradient, to more effectively weaken mid-frequency and low-frequency noise and vibrations.
Application location and characteristics
Installation location: Inner side of the front panel (on the passenger compartment side), covering the junction area between the engine compartment and the cabin.
Process characteristics: Mostly uses hot melt film pressing molding or press machine pressing processes. The materials need to be resistant to high temperatures (usually above 130°C) and have flame retardancy (in accordance with GB 8410-2006).
Suitable vehicle types: Not only used in cars, but also widely applied in heavy truck cabs and other commercial vehicle types.
To determine if the automotive heat insulation panel is damaged, one can start by checking for wear, abnormal sounds, installation conditions, and component temperatures.
If the wear is severe rather than slight, it may require replacement; abnormal sounds under the engine during driving may indicate aging of the heat insulation panel; if the heat insulation panel is damaged, deformed, detached, or loose, it also means it may be damaged; in addition, abnormal overheating in certain areas of the vehicle interior during summer may be related to the damage of the heat insulation panel. Careful inspection in these aspects can roughly determine the condition of the heat insulation panel.
First, look at the wear condition. Over time and under complex environmental influences, the heat insulation panel is inevitable to wear. During daily driving, impacts from sand and stones on the road, high-temperature baking, etc., will gradually erode the heat insulation panel. Minor wear usually does not affect its function and can still be used. But if the wear is severe, such as large-scale detachment of the insulation layer or significant thinning of the thickness, the insulation effect will definitely be greatly reduced, and it is necessary to replace it in time to avoid affecting vehicle performance and component lifespan.
Also pay attention to whether there are abnormal sounds. During low-speed driving or when the engine is idled under cold weather conditions, if an abnormal sound is heard from under the engine, it may be due to the aging of the heat insulation panel. After aging, the structural stability of the heat insulation panel deteriorates, and under the impact of engine vibration, air flow, etc., it is prone to produce sounds. Once this occurs, it is necessary to check the heat insulation panel promptly and, if necessary, replace or remove it.
The installation condition is also not to be ignored. Regularly check if the heat insulation panel is damaged, deformed, or detached, and also check if the installation is firm. The vibrations and bumps during vehicle driving may cause the fixation parts of the heat insulation panel to loosen. If the heat insulation panel is loose, not only will the insulation effect be reduced, but it may also cause shaking and collision during driving, produce noise, and even pose safety hazards.
Component temperature can also reflect the condition of the heat insulation panel. Especially in summer, if certain areas of the vehicle interior are abnormally hot, such as under the control panel or near the seats, after excluding other factors, it is very likely that the heat insulation panel is damaged. A damaged heat insulation panel will allow a large amount of heat to be conducted into the vehicle, not only affecting the comfort of passengers but also accelerating the aging of the vehicle's wiring and components. In conclusion, to determine whether the car insulation panel is damaged, a comprehensive consideration from multiple aspects is necessary. During daily driving, pay close attention to these details and address any issues promptly. This not only ensures the normal operation of the vehicle but also enhances the driving experience.
If you want to know more, keep reading the other articles on this site!
