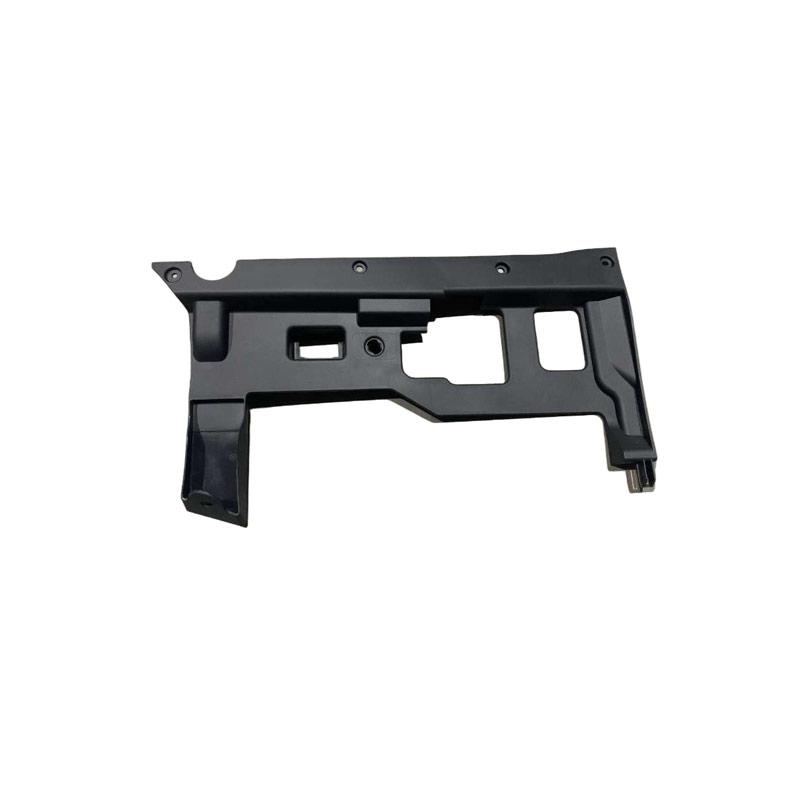

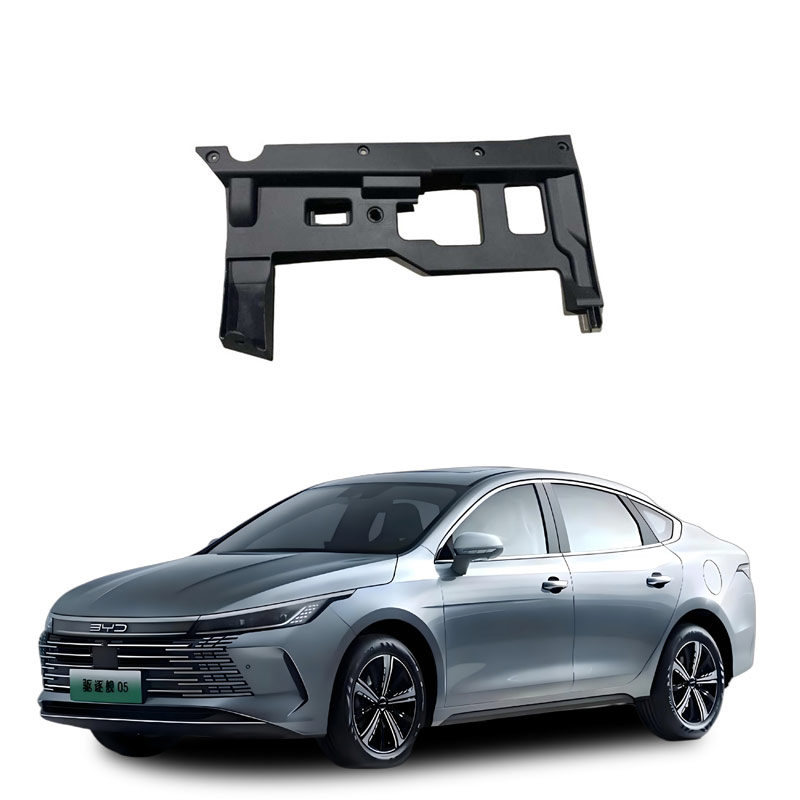

What is the soundproof panel located at the lower left of the car dashboard?
The left lower sound insulation panel on the car dashboard is a component installed in the area below the dashboard of the cockpit (usually near the driver's foot position) for sound insulation, absorption, and vibration reduction. Its main function is to block the noise, vibration, and heat generated in the engine compartment from entering the cabin.
Functions and purposes
Sound insulation and noise reduction: Reduce the noise generated by the engine, intake and exhaust systems, and other components in the front compartment that is transmitted through the firewall into the cabin.
Sound absorption treatment: Absorb high-frequency or mid-frequency sound waves to enhance the quietness inside the cabin.
Heat insulation and insulation: Some materials also have heat insulation properties, reducing the impact of engine heat on the cabin.
Vibration reduction and shock absorption: Suppress the resonance of the sheet metal below the dashboard during vehicle movement to reduce low-frequency noise.
Common positions and structures
Located at the left lower corner of the dashboard, near the left foot area of the driver.
Usually covered by a guard plate or cover, and can only be accessed by removing part of the interior.
In some models (such as Cruze, Mercedes-Benz A200/E300, BYD Tang L, etc.), this position will be equipped with dedicated sound insulation pads or sound insulation boards.
Suggestions for modification and upgrade (if the original vehicle does not have it or the effect is poor)
If the sound insulation in this area of the original vehicle is weak, consider the following upgrade options:
Vibration suppression materials: such as STP small bombs, European standard vibration suppression plates, M-mat vibration reduction pads, used to suppress sheet metal vibration.
Sound absorption materials: such as AC06 cotton, NB2 cotton, CSH pearl cotton, black linear cotton, used to absorb residual noise.
Construction method: generally requires removing part of the dashboard under guard plates, and attaching the materials to the junction of the firewall and the inner side of the dashboard.
Note: Self-disassembly and assembly should be done carefully to avoid damaging wires or sensors (such as the indoor temperature sensor).
Reference for related vehicles
Cruze: Equipped with thick front compartment sound insulation pads, located inside the dashboard.
Mercedes-Benz A200/E300: Uses STP or M-mat series materials for multi-layer sound insulation in the dashboard below.
BYD Tang L: Uses European standard vibration suppression plates + black linear cotton for this area.
Common causes and handling suggestions:
Common causes
Plastic cover plate loosening or aging: Long-term use or thermal expansion and contraction causing the latch to fail, causing friction or resonance noise due to the movement of the cover plate .
Sound insulation/sealing rubber strip missing or aging: Some models have sound insulation rubber strips between the dashboard and the windshield, or at the bottom of the control panel. If they are reduced,hardened， they will introduce wind noise or structural noise .
Internal wires or air conditioning ducts not fixed firmly： When jolting， they collide with surrounding components and produce noise .
Driver's side seat belt buckle not in place or B-pillar cover plate loosening： The sound may be transmitted to the left area of the dashboard and be mistaken for a fault in this area .
"Thermal expansion and contraction-induced 'clicking' sound of plastic parts"： Especially in large temperature differences， different materials have different shrinkage rates， resulting in slight impact sounds .
Self-inspection steps
Observe the triggering conditions of the abnormal noise：
Is it only present on bumpy roads？ → Most likely due to loose parts.
Is it obvious at high speed？ → May be related to wind noise or pressure strips.
Is it present when the vehicle is cold or hot？ → May be due to thermal expansion and contraction .
Simple test：
Gently press the left lower area of the dashboard to see if the abnormal noise can be suppressed → If it can， it indicates that the cover plate is loose .
Check if the driver's side glove compartment and seat belt buckle are in place .
Check if the pressure strip at the junction of the dashboard and the windshield or has fallen off .
Temporary treatment method：
For loose cover plates： Use a plastic pry bar to carefully reset， and if necessary， use 3M glue to reinforce the latch . Regarding the friction points: Use rubber pads, soft materials or temporarily fill with modeling clay for cushioning.
If the gap is large or self-treatment fails, it is recommended to go to a formal 4S store or a professional repair facility for inspection.
