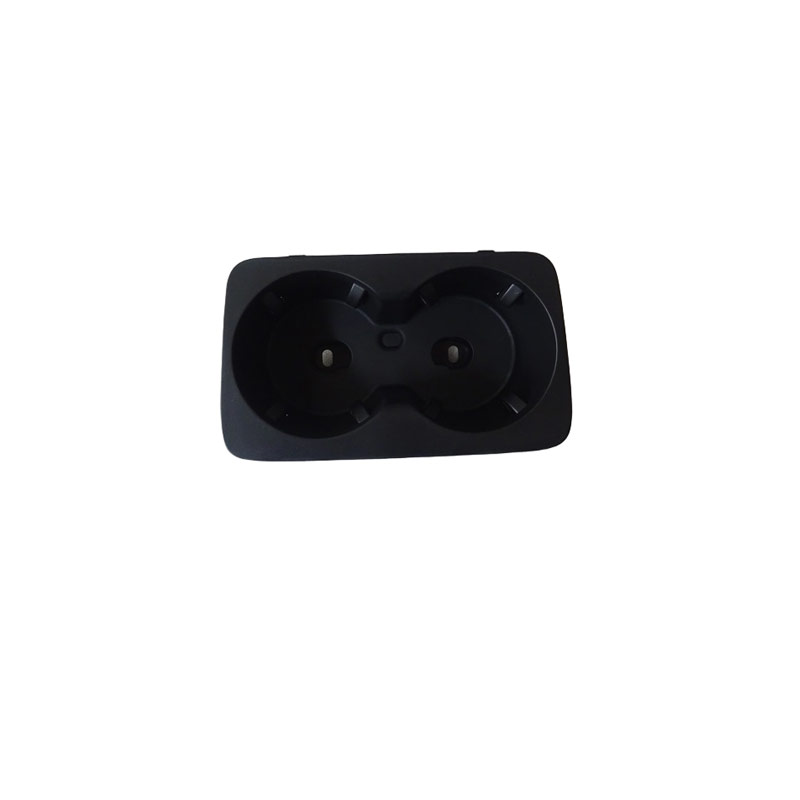

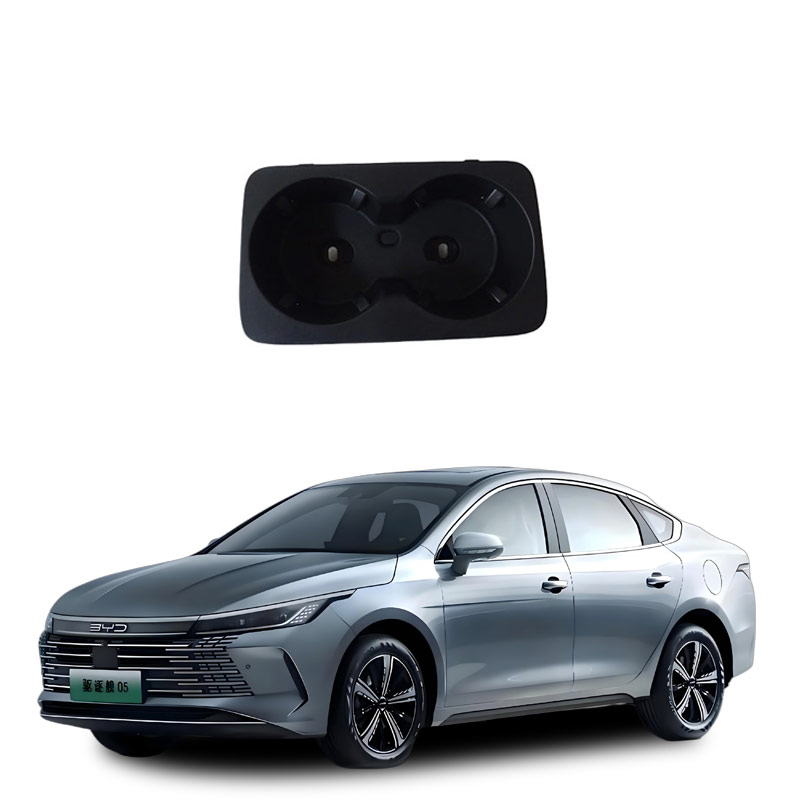

What is the automotive auxiliary dashboard cup holder assembly?
The automotive auxiliary dashboard cup holder assembly is a cup holder functional module integrated into the auxiliary dashboard (also known as the central console or middle console) in the car interior, specifically designed for storing and holding beverages such as water bottles, and may also incorporate intelligent functions such as lighting, heating/cooling, and automatic elevation.
According to public information, its core definition and features are as follows:
Basic Function: Provides a safe, stable, and convenient space for storing water bottles and other beverages for drivers and passengers, usually located between the front seats, near the driver or the passenger side.
Structural Composition:
Cup Holder Body (including cup hole)
Clamping Mechanism (such as elastic claws to prevent items from shaking and falling off)
Fixing Structure (such as clamping pieces, self-tapping screws, etc., used to connect the auxiliary dashboard body)
Optional Functional Components: Light strips, air vents (for temperature control), automatic elevation mechanism, etc.
Design Specifications:
Cup Holder Diameter ≥ 80 mm
Cup Holder Depth ≥ 65 mm
Should be able to accommodate a 500 mL mineral water bottle and hold cans and other items without falling out
Development Trends:
Integrating ambient lighting, vacuum coating decoration to enhance visual effects
Automatic elevation, electric adjustment to improve operational convenience and intelligence level
Strengthening storage reliability and ergonomic comfort
This assembly is an important sub-component of the auxiliary dashboard assembly, which also includes armrest boxes, shift mechanisms, storage compartments, rear outlets, etc.
The automotive auxiliary dashboard cup holder assembly is an important interior component located in the center of the driver's cabin, between the front seats, in the central console (also known as the central aisle or console). Its main functions are as follows:
Provide beverage storage function: Provides a stable and safe space for drivers and passengers to place water bottles, beverage bottles, etc., to prevent spillage or sliding during vehicle movement.
Enhance clamping reliability: Through clamping mechanisms such as elastic claws, it adapts to different diameters of cups, improving the fixation of items, especially reducing shaking during sudden braking or turns.
Improve operational convenience: Some high-end models adopt rotating, pull-out, folding, or even automatic elevation structures, making it easy to access and saving space.
Integrate intelligent and comfort functions: Modern cup holder assemblies can integrate additional functions such as light strips, heating/cooling, and wireless charging, improving night vision effects or enhancing the user experience.
Optimize ergonomic and aesthetic design: Combined with the overall interior style, it adopts circular, irregular, or open designs, balancing space utilization and visual appeal.
In addition, the cup holder assembly is usually a part of the auxiliary dashboard assembly, working in coordination with functions such as the shift mechanism, armrest boxes, storage compartments, and outlet panels, to form the core interaction and practical area of the cockpit.
Common faults of the automotive auxiliary dashboard cup holder assembly usually manifest as problems such as inability to open normally, jamming, loosening, or panel fracture. According to public information, the common causes and solutions are as follows:
Common Fault Causes
Structural Wear or Damage: Such as gear tooth crushing, card feet fracture, shell deformation, especially prone to occur after frequent use.
Insufficient Material Strength: Some models use PP (polypropylene) material, which is prone to being crushed under long-term force, resulting in functional failure.
Foreign Objects or Liquid Leakage: Beverage overflow and seepage into the bottom of the cup holder, causing lock body stickiness or rust, leading to jamming.
Elasticity of Clamps Aging or Loosening: Long-term use leads to elasticity decline, resulting in abnormal sounds or instability.
Typical Fault Cases
Zhongtai T600: The rear cover plate on the left side of the auxiliary dashboard detaches, due to poor card foot clamping.
Ruihuo 8 Pro: The auxiliary dashboard decorative cover plate fractures, requiring a complete replacement.
Jin Yue: The cup holder is stuck, due to beverage seepage causing lock body stickiness.
Old Mercedes-Benz E-Class (W211): The cup holder latch is loose. It can be solved by replacing the original factory assembly.
Solution suggestions:
Lightly stuck: Clean the inside of the cup holder, remove foreign objects or dry it.
Panel fracture or severe loosening: It is recommended to replace the side dashboard cup holder assembly. For some models, the panel can be replaced separately, but for most, the entire panel needs to be replaced.
Purchase accessories:
You can query the original or compatible accessories for the compatible vehicle models through the Autohome Forum.
For the old Mercedes-Benz E-Class, you can consider the original assembly of the cup holder from Jinli Ma Store.
Maintenance complexity: Some models require the removal of the center console and air conditioning panel, etc., which involves a large amount of work. It is recommended to be operated by professional repair personnel.
