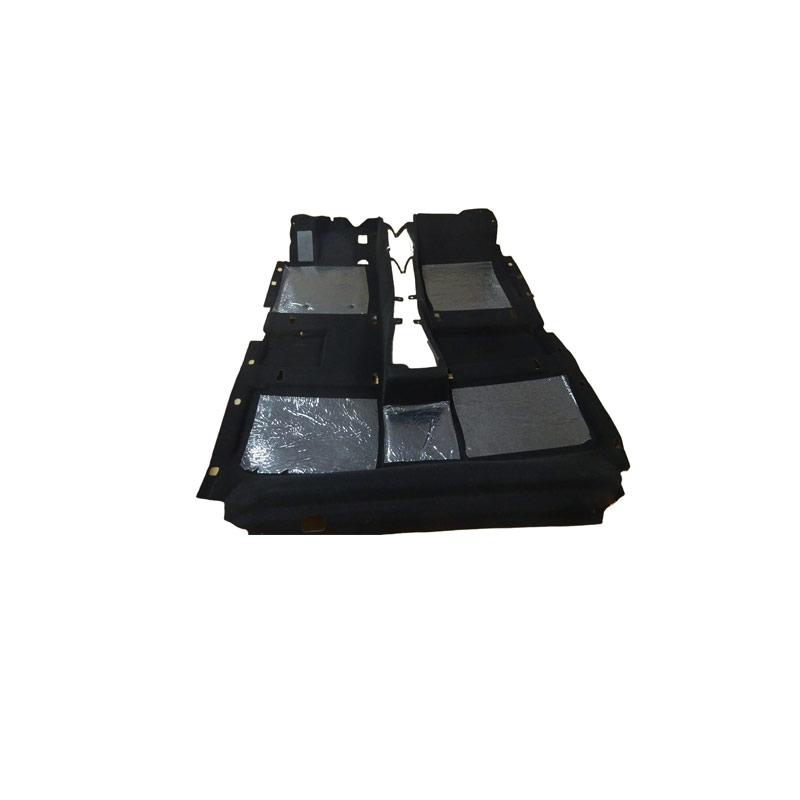

What does the car carpet assembly consist of?
The automotive carpet assembly is an important component of the car interior. It not only has a decorative function but also performs multiple functions such as sound insulation, sound absorption, shock absorption, heat insulation, anti-slip, and flame retardancy. According to public information, its typical structure and composition are as follows:
Basic structure composition
Fabric layer (surface layer): In direct contact with the feet, common materials include nylon (PA), polyester (PET), or polypropylene (PP). High-end models often use nylon to enhance wear resistance and texture .
Middle layer (frame/buffer layer):
May be EVA reinforced coating, non-woven fabric, or high-density foam (such as PU foaming layer), used to enhance comfort, sound insulation, and sound absorption .
Some designs also include waterproof film and anti-fouling layer (such as nano coating) to improve ease of cleaning and durability .
Backing layer (substrate): Usually PVC, rubber, or composite materials with fabric backing, used to fix the structure, provide anti-slip properties, and protect lower components .
Additional components of the assembly
Positioning clips/fixed parts: Used to reliably fix the carpet assembly to the vehicle floor, threshold, pedal, etc. .
Threshold pedal and lower trim panel: Coordinated with the carpet edge to form a complete interior transition .
Footpad integrated structure: Some carpet assemblies have a detachable footpad integrated at the front end, connected by magnetic, clamping, or rotating shaft methods, for easy cleaning .
VIN code cover, reserved opening: Used to cover sensors, modules, or wiring interface (such as four-wheel drive management module, DC power management module, etc.) .
Support structure and reinforcement parts: Set in key areas (such as near the threshold) to provide support and ensure the carpet adheres closely to the surrounding components, avoiding gaps .
Performance and design requirements
Weight control: Usually not exceeding 10 kg to ensure convenient installation and ergonomic design .
Environmental adaptability: Needs to be resistant to high and low temperatures, moisture-proof, corrosion-resistant, and have high color fastness .
Safety standards: Meets flame retardancy (such as GB 8410) and low VOC (volatile organic compounds) emission requirements .
Note: The carpet assemblies of different vehicle models (such as sedans, SUVs, heavy trucks) have differences in specific structure and materials, but the core functions and composition logic are the same .
Common faults of the automotive carpet assembly usually manifest as carpet wetting, collapse, mold growth, unpleasant odor, or loose fixation problems. Based on the current time (April 2026) and authoritative public information, the following are common causes and handling suggestions:
Common fault causes
Air conditioning drainage outlet blockage: Condensate water cannot be drained and seeps onto the carpet (especially the passenger seat), a common problem in summer .
Sunroof or door sealant aging: Rainwater seeps in through the gaps, causing the carpet to be damp .
Windshield detaching or poor sealing: Rainwater flows along the dashboard into the vehicle .
Long-term stepping or heavy object pressing: Causes carpet fibers to collapse and lose elasticity .
Material aging or poor quality: Some vehicle models use low-density carpets to control costs, which are prone to wear and absorb water .
Driving through water or chassis damage: Mud and water enter from the bottom of the vehicle, contaminating the carpet and wiring .
Handling steps
Confirm the type of water contamination
If it is clear water: mostly problems with air conditioning or sunroof drainage .
If it is antifreeze (with a sweet taste and bright color): need to check the heating water tank or pipeline .
Emergency handling
Immediately remove the footpad and carpet, ventilate and dry .
Open the sealing plug of the vehicle chassis (if available), drain the water .
Thoroughly investigate the source
Check if the air conditioning drainage pipe is detached or clogged (can be cleared with iron wire or compressed air).
Check if the sunroof, door, or windshield sealant is cracked or aged . For specific models like the RS-5, the original factory air conditioning drainage outlet is designed to be relatively small. It is recommended to replace the dedicated and lengthened drainage pipe and install it firmly.
Cleaning and Repair
The carpet can be scrubbed with a neutral cleaner, but avoid complete immersion to prevent damage to the internal structure.
When the cotton layer is severely moldy or missing, you can purchase specialized carpet cotton for repair or replace the assembly.
Reattach the carpet using double-sided tape or a heating melt glue gun.
Preventive Measures
Regularly clean the rain window drainage holes and air conditioning drainage outlets.
Dry the interior moisture promptly after rain and keep the ventilation.
Avoid placing heavy objects on the carpet for a long time.
