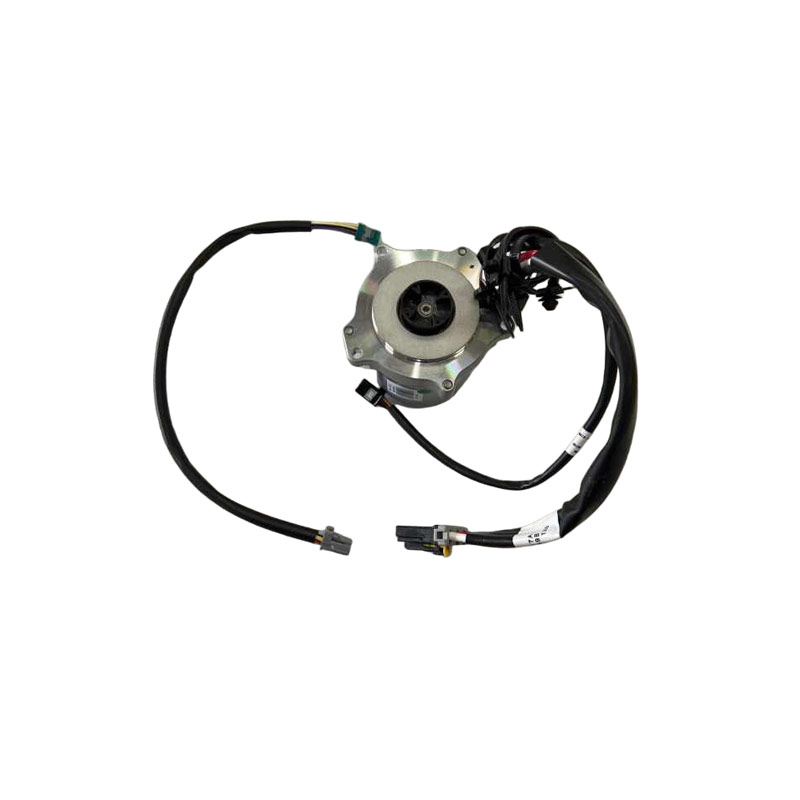

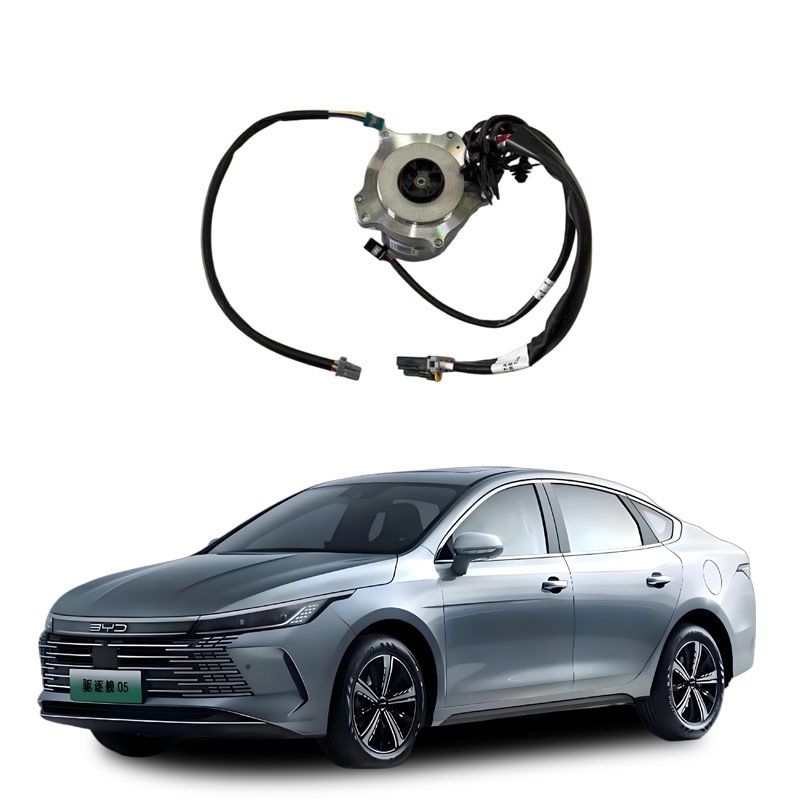

What is the brushless motor assembly for automobiles?
The brushless motor assembly for automobiles refers to a complete drive system that integrates a brushless DC motor (BLDC), a reducer, a controller, sensors, etc. It is used in automobiles to convert electrical energy into mechanical energy to drive various actuators. It eliminates the carbon brushes and commutators in traditional brushed motors and adopts an electronic commutation method, featuring high efficiency, low noise, and long lifespan.
Core components
(Stator): The stationary part, composed of silicon steel sheets stacked into a core and three-phase windings, generates a rotating magnetic field when energized.
(Rotor): The rotating part, typically made of high-performance permanent magnetic materials such as Nd-Fe-B, interacts with the stator magnetic field to generate torque.
Electronic commutation system (controller/DC inverter): Uses Hall sensors or back electromotive force to detect the rotor position, controlling the three-phase inverter bridge (6 power switches) to turn on and off logically to achieve winding current commutation.
Position sensor: Commonly a Hall sensor, some high-end or non-inductive solutions can be omitted, estimating the rotor position through algorithms.
(Bearings and housing): Support the rotor rotation and provide mechanical protection. The housing also serves for heat dissipation and protection (such as IP67 rating).
Integrated design: In new energy vehicles, it is often integrated with the reducer, motor controller (MCU), forming a "three-in-one" electric drive system, improving space utilization and lightweighting levels.
Typical applications in automobiles
Electric power steering (EPS)
Wiper motor
Seat adjustment motor
Air conditioning fan and compressor
Fuel pump, water pump, cooling fan, etc. auxiliary systems
Advantages and features
No carbon brushes, no sparks: High reliability, suitable for flammable and explosive environments (such as near the automotive fuel system).
High efficiency: Energy conversion efficiency can reach over 85%, superior to brushed motors.
Low maintenance: The wear is mainly concentrated on the bearings, with a lifespan of tens of thousands of hours.
Wide speed regulation range: Can output large torque at low speeds, suitable for frequent start-stop scenarios.
Support for regenerative braking: Can act as a generator to recover energy during braking.
Related technical explanations
Control method: Mainly uses six-step commutation (square wave control) or more advanced magnetic field orientation control (FOC, sine wave control), the latter has smaller torque pulsation and lower noise.
Structural type: Internal rotor type (high response, good heat dissipation) and external rotor type (high torque, stable speed), choose based on the application.
Integration trend: Modern cars tend to integrate the motor + controller + reducer, reducing wiring and costs, such as NIO's "three-electric" system.
In automobiles, the brushless motor assembly (usually referring to a complete power unit consisting of a brushless motor body, drive controller, position sensor, etc.) mainly functions to efficiently convert electrical energy into mechanical energy, driving the vehicle or auxiliary systems. Its core value lies in high efficiency, long lifespan, low noise, and maintenance-free, especially suitable for automotive applications with high reliability and energy efficiency requirements.
The main functions of the brushless motor assembly for automobiles
Driving vehicle movement: As the main drive motor for electric vehicles or hybrid vehicles, it provides high starting torque and wide speed regulation range, directly driving the wheels.
Auxiliary system control: Used for various on-board auxiliary devices, such as:
Electric power steering (EPS)
Electronic water pump, oil pump Air conditioning compressor
Skylight, windshield wipers
Intelligent seat adjustment, electric doors, etc.
Energy recovery: When braking or coasting, it can switch to the generator mode, converting kinetic energy into electrical energy and feeding it back to the battery (regenerative braking).
Improving the overall energy efficiency of the vehicle: The efficiency is generally above 85%, significantly more energy-efficient than traditional brushed motors, which helps to extend the range of electric vehicles.
Brief description of the core structure and working principle
Stator: After the three-phase windings are energized, a rotating magnetic field is generated.
Rotor: It uses permanent magnets (such as neodymium iron boron), which rotate synchronously under the influence of the stator magnetic field.
Position sensor (such as Hall element): It detects the rotor position in real time and provides the controller with the basis for phase switching.
Drive controller (ESC): Based on the sensor signals, it precisely controls the current flow through electronic commutation (such as six-step commutation or FOC control) to achieve continuous torque output.
