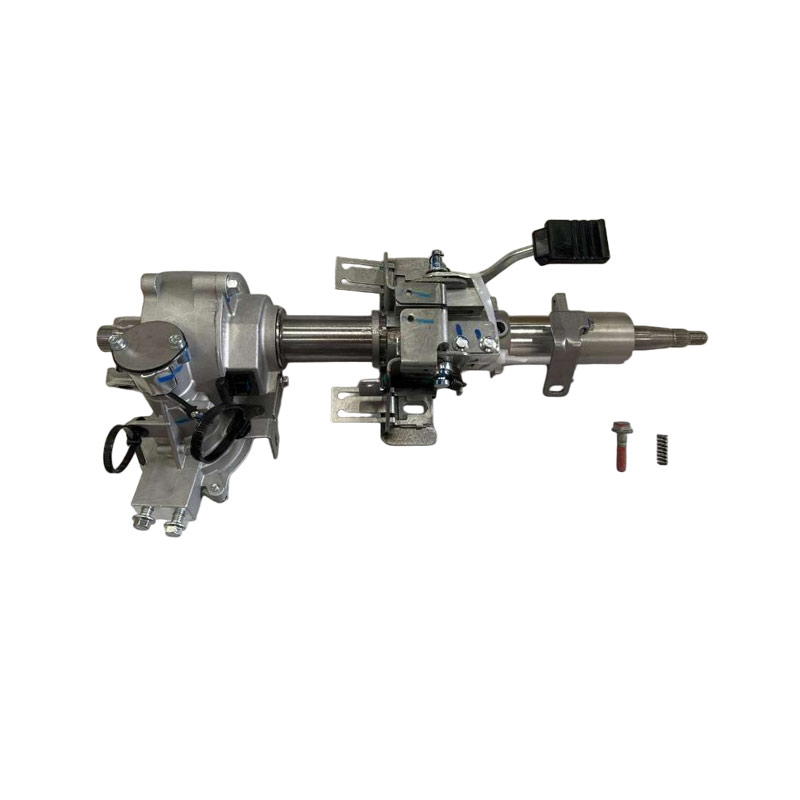

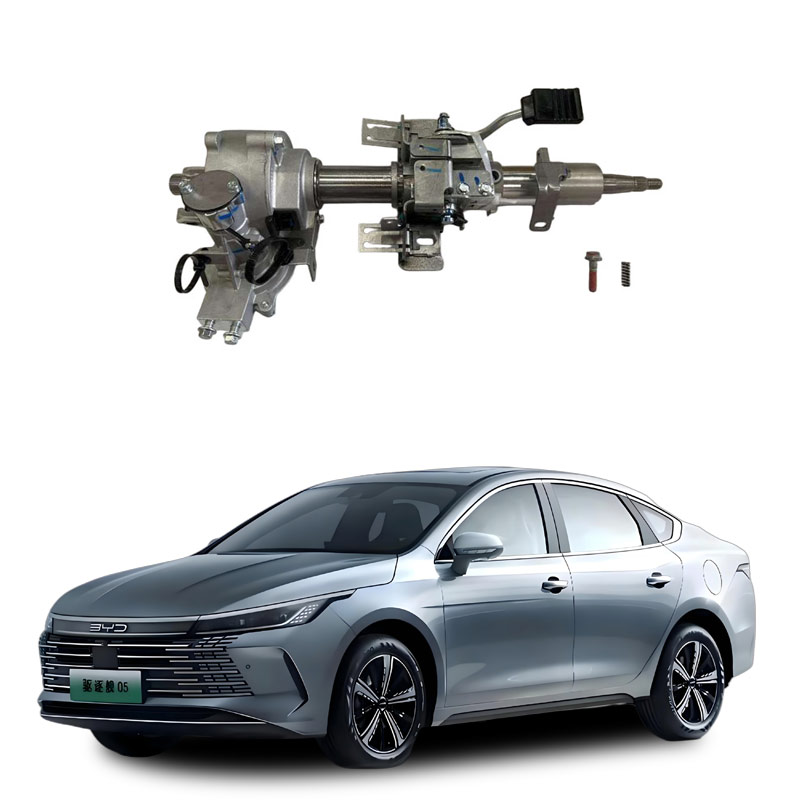

The function of the automotive steering column assembly
The steering column assembly is a core component of the vehicle's steering system, connecting the steering wheel to the steering gear. It plays a crucial role in terms of handling, safety, and comfort. Its main functions can be summarized as follows:
Core Function
Torque Transmission: The force and angle applied by the driver to turn the steering wheel are transmitted to the steering gear through a universal joint or spline shaft, enabling the wheels to turn as intended, ensuring precise and rigid steering response.
Collision Energy Absorption Protection: In a frontal collision, the vehicle's crumple structure (such as bent guard plates, energy-absorbing belts, injection-molded pins, etc.) undergoes plastic deformation to absorb part of the impact energy, limiting the distance the steering wheel moves backward (up to approximately 120mm), and reducing secondary injury to the driver's chest.
Steering Wheel Adjustment Function: Supports 40mm telescopic adjustment and ±15° tilt angle adjustment. The operating torque is ≤ 5N·m, adapting to drivers of different body types, and enhancing comfort.
Additional Functions
Anti-theft Locking: After removing the ignition key, the electronic module drives the locking pin to insert into the steering column lock sleeve, locking the torque ≥ 30N·m, preventing the vehicle from being illegally started and driven.
Structural Integration: Modern steering column assemblies often integrate shift paddles, multimedia control, cruise control, and other functions; some high-end models adopt aluminum lightweight design and support power adjustment and position memory (with positioning accuracy of ±0.5mm).
Technical Parameters and Standards
According to the "Mechanical Steering Column" group standard (T/CSTE 0049S-2024):
Static Torsion Strength: ≥ 250N·m (without plastic deformation for 60 seconds)
Fatigue Life: Passes 10⁶ cycle tests under ±45N·m alternating load
Environmental Tolerance: Operates normally within the temperature range of -40°C to 85°C
Corrosion Resistance: After 480 hours of neutral salt spray test, the rusted area is ≤ 3%
Note: With the development of line-controlled steering (such as NIO ET9) and intelligent adjustment technologies, some new vehicles have eliminated traditional mechanical steering columns and replaced them with electronic signal control.
The steering column assembly is a key component of the vehicle's steering system. Once damaged, it significantly affects handling and driving safety. According to multiple articles published by authoritative automotive media (such as Pacific Auto, Youjia, etc.) between 2024 and 2026, the typical symptoms of damage to the steering column assembly include:
Main Symptoms
Straight-Line Deviation: The vehicle cannot maintain a straight course on a flat straight road and needs to continuously adjust the steering wheel to correct the direction.
Steering Wheel Weakening: Turning the steering wheel is noticeably more difficult, especially at low speeds or when turning in place.
Increased Free Travel: The steering wheel does not respond initially when turning, resulting in slow or inaccurate steering response.
Excessive or Insufficient Steering: The actual steering angle does not match the intended operation, causing steering malfunction.
Steering Jitter or Abnormal Noise: The steering wheel shakes when turning, or emits abnormal sounds such as "clicking", "buzzing", or "clunking".
Turn Signal Light Flashes: The warning light for the steering assist system (such as EPS light) may illuminate.
Steering Assist System Fault Codes: Such as C1511, C1522, etc., related to the steering control unit.
Automatic Steering or Poor Re-centering: The steering wheel automatically deviates when not operated, or re-centers slowly and jerkily.
Unequal Lightness on Both Sides of Steering: The feel is significantly different when turning left or right, often accompanied by a tendency to deviate to the lighter side.
Other Potential Risks
In severe cases, the steering system completely fails: Resulting in complete loss of steering control, which is extremely dangerous.
Internal Parts Wear, Rust, or Deformation: Especially in coastal or areas with high salt content, this is more likely to occur. However, if there is excessive wear, rust or deformation, it is usually necessary to replace the entire steering column assembly to ensure safety.
