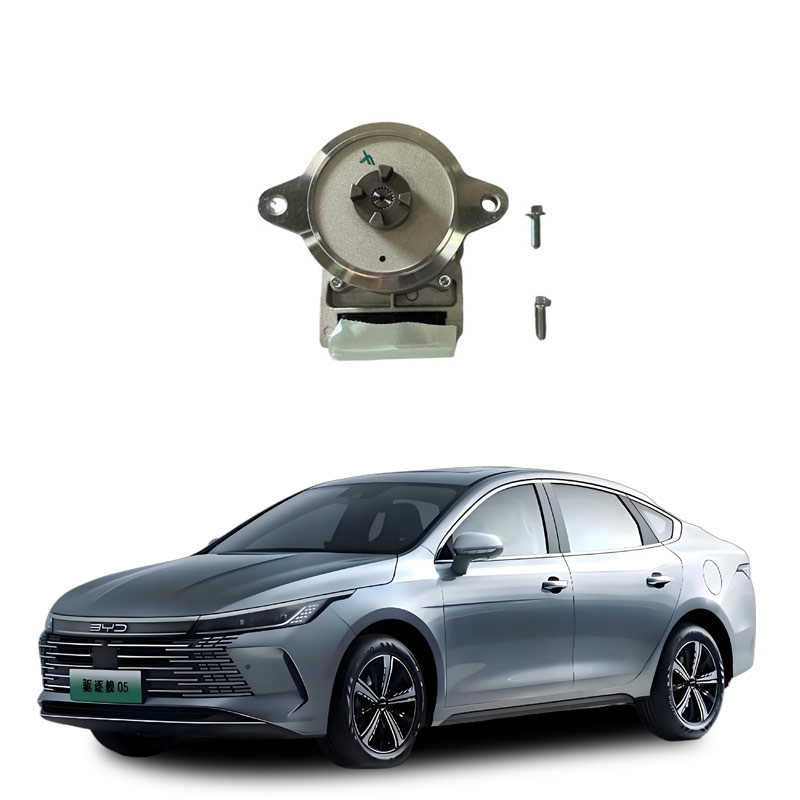

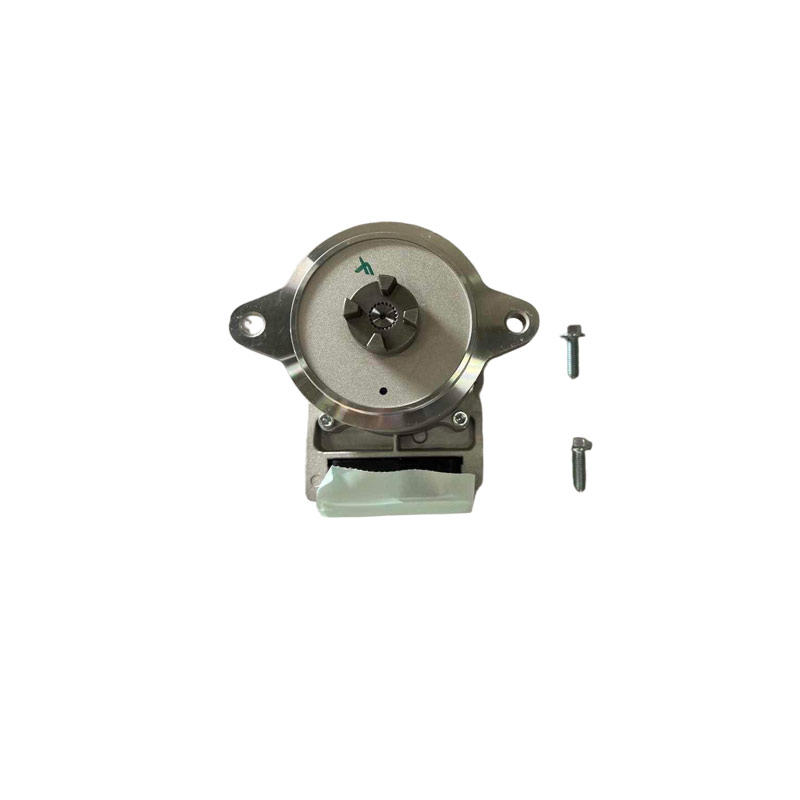

What are automotive electric motors and controller components?
The electric motor and controller are the core components of the "three-electric systems" (battery, motor, and electronic control) of new energy vehicles, jointly achieving the conversion and precise control of electrical energy to mechanical energy.
Main components of the electric motor (drive motor)
Stator (Stator): The fixed part, containing windings, which generate a rotating magnetic field when energized.
Rotor (Rotor): The rotating part, generating torque under the influence of the magnetic field, driving the vehicle to move.
Bearing (Bearing): Supports the rotor, reducing friction and ensuring smooth operation.
Electronic commutator (Electronic Commutator): For brushless DC motors (BLDC), it converts DC electricity to AC electricity to drive the stator.
Cooling system (Cooling System): Uses natural cooling, air cooling, or liquid cooling methods to prevent the motor from overheating.
Sensors (Sensors): Such as Hall sensors, resolver, used to detect the position and speed of the rotor.
Main types include permanent magnet synchronous motor (PMSM) and AC induction motor (ACIM).
Main components of the motor controller (MCU / electronic control system)
The motor controller is the "brain" of the motor, responsible for precisely controlling its operation. According to authoritative sources, its core components include:
Microcontroller (MCU): Processes sensor data and executes control algorithms (such as PID, fuzzy control).
IGBT module / MOSFET module: Core power devices, converting DC electricity to three-phase AC electricity to control the motor speed and direction.
Drive board and power circuit: Includes inverters, DC-DC converters, boost circuits, etc.
Sensor interface: Collects voltage, current, temperature, speed, etc. signals.
Communication interface: Such as CAN, LIN bus, used for communication with the vehicle control unit (VCU).
Protection circuit: Implements overcurrent, overvoltage, overheat, short-circuit, etc. fault protection.
Cooling system: The controller shell is equipped with water channels, which circulate coolant through a water pump for heat dissipation.
The controller is also responsible for energy recovery (regenerative braking), forward/reverse control, and creep mode functions.
System coordination relationship
Vehicle control unit (VCU) → Motor controller (MCU) → Electric motor → Sensors → Real-time feedback → Forming a closed-loop control.
This system determines the vehicle's power performance, energy efficiency, safety, and driving experience, and is the key difference between new energy vehicles and traditional fuel vehicles.
Electric motor and controller are the core components of the "three-electric systems" (battery, motor, and electronic control) of new energy vehicles. They work together to achieve efficient conversion of electrical energy to mechanical energy and support functions such as energy recovery and safety control.
The role of the motor
Power output: Converts the electrical energy output by the battery into mechanical energy to drive the vehicle.
Performance determination:
Maximum power: Determines the maximum vehicle speed;
Maximum torque: Determines acceleration ability and climbing performance.
Energy recovery: When decelerating or braking, the motor operates in reverse as a "generator", converting vehicle kinetic energy into electrical energy and recharging the battery (i.e., regenerative braking).
Silent operation: Compared to fuel engines, noise and vibration are significantly reduced, improving ride comfort.
Main types include permanent magnet synchronous motor (PMSM) and AC induction motor, among which PMSM is widely used in mainstream electric vehicles due to its high efficiency and high power density.
The role of the controller (motor controller / MCU)
The motor controller is the "nerve center" connecting the battery and the motor, with core functions including: Electric energy conversion: Convert the high-voltage direct current (DC) from the battery pack into three-phase alternating current (AC), driving the motor to operate.
Precise regulation: According to the instructions from the vehicle control unit (VCU), adjust the motor's speed, torque, and rotation direction in real time to meet driving requirements such as smooth acceleration, reversing, and climbing slopes.
Energy recovery control: During braking or coasting, control the motor to enter the power generation mode and return the electrical energy to the battery.
Safety guarantee: Real-time monitoring of abnormal conditions such as overcurrent, overvoltage, undervoltage, overheating, and phase failure;
In the event of a fault, quickly cut off the high-voltage circuit to protect the system safety.
Communication collaboration: Communicate with components such as the VCU and BMS via the CAN bus to achieve energy optimization and collaborative control of the entire vehicle.
Typical structure composition (taking the motor controller as an example):
Shell: Provides protection, dust-proof and water-proof;
High-voltage/low-voltage connectors: Used for power input and communication/control signals;
Electronic control module: Contains a microprocessor, sensor interfaces, and communication circuits;
Power conversion module: The core is the IGBT module, performing DC/AC inversion;
Heat dissipation system: Usually adopts a water-cooling design to ensure stable operation under high power.
Development trends:
High integration: Form a "three-in-one" electric drive assembly with the motor and reducer, reducing weight and cost;
Wide bandgap semiconductor application: Such as silicon carbide (SiC) devices, improving efficiency and power density;
Higher control accuracy: Adopt advanced algorithms such as field-oriented control (FOC) to achieve millisecond-level dynamic response.
Summary: The motor is responsible for "executing" the power output, while the controller is responsible for "deciding" and "converting". Together, they determine the performance, efficiency, and safety of the electric vehicle.
