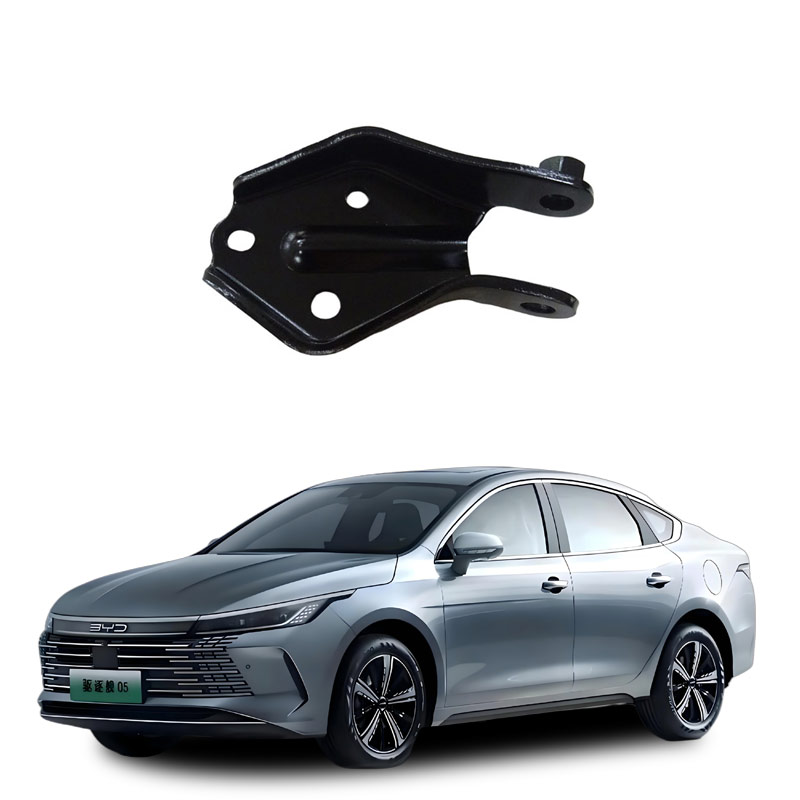

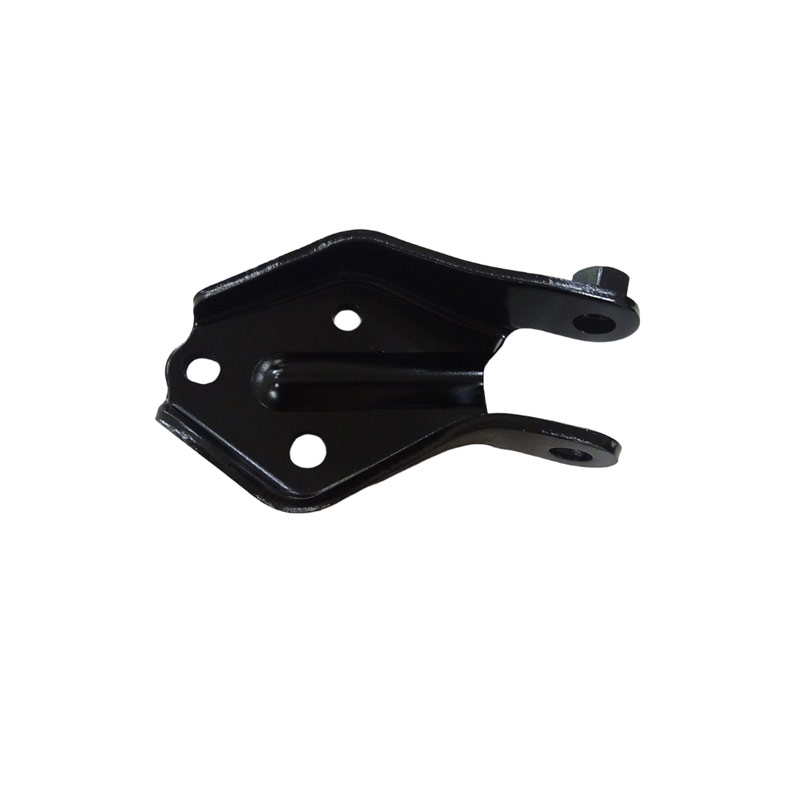

The function of the rear suspension bracket assembly of the car
The rear suspension bracket assembly is a crucial connecting component in the suspension system. Its main functions can be summarized as follows:
Support and connection: As the installation base for elastic elements (such as coil springs, leaf springs), shock absorbers, and force transmission devices (such as control arms, connecting rods), it firmly connects the axle (or wheel) to the frame (or subframe), ensuring the reliable transmission of force.
Force and torque transmission: It is responsible for transmitting the longitudinal force, lateral force, and braking/driving force from the wheels to the vehicle body, while also bearing and distributing the impact loads from the road surface.
Constraint of wheel movement trajectory: Through cooperation with the steering mechanism (such as swing arms, thrust rods), it limits the bouncing direction and angle of the wheels, ensuring the stability and handling of the vehicle during steering.
Buffering and vibration reduction assistance: Some brackets are integrated with rubber bushings or ball joints, used to absorb high-frequency vibrations, reduce noise, and allow necessary relative movement, improving passenger comfort.
Structural stiffness guarantee: In non-independent suspensions (such as torsion beam systems), the brackets often serve as integral structural components to maintain the positioning of the axle; in independent suspensions, they support the multi-link system to ensure precise coordination of each link.
In summary, the rear suspension bracket assembly is the "skeleton" of the suspension system, directly affecting the vehicle's comfort, handling, safety, and durability.
Faults in the rear suspension bracket assembly may involve multiple components, such as control arms, tie rods, stabilizer bar connections, or their rubber bushings. According to authoritative public information, the following are common manifestations, impacts, and recommended solutions:
Common fault manifestations
Abnormal noise: During driving (especially when passing over减速带 or bumpy roads)， there is a "clunking" or "grating" noise， usually caused by aging rubber bushings， loose ball joints， or broken brackets.
Vehicle instability： The vehicle veers， tilts， or exhibits significant side-sway when cornering， or shakes in the direction of the steering wheel at high speeds.
Abnormal tire wear： Deformation or loosening of the suspension bracket causes misalignment of the wheel positioning， resulting in single-sided or zigzag tire wear.
Reduced shock absorption effect： The ride becomes more bumpy， and the vehicle's rebound occurs more frequently (normally it should stabilize within 1-2 times).
Potential risks
Reduced handling performance： Failure of the rear suspension bracket assembly weakens the adhesion between the wheels and the ground， affecting the steering response and braking stability.
Safety risks： In severe cases， it may cause component fractures， leading to vehicle loss of control or accidents.
Recommended handling steps
Initial inspection：
Observe if the shock absorber is leaking oil， if the bracket has cracks or if the rubber parts are bulging.
Raise the vehicle， shake the tires by hand or pry the connecting parts， and check for looseness or abnormal noise.
Professional diagnosis：
Visit a reputable repair shop or a brand-authorized service center， and use professional equipment to detect the geometric parameters of the suspension and electronic systems (if applicable).
Timely repair：
Replace damaged brackets， bushings， or related components， and perform four-wheel alignment.
For vehicles equipped with air suspension systems， such as Land Rovers， special checks on the height sensor and ECU status are necessary.
Important reminder： Suspension faults directly affect driving safety. Do not continue driving， especially when there is obvious noise， vehicle tilting， or abnormal handling. Immediately stop the vehicle and contact professional rescue when such symptoms are present.
