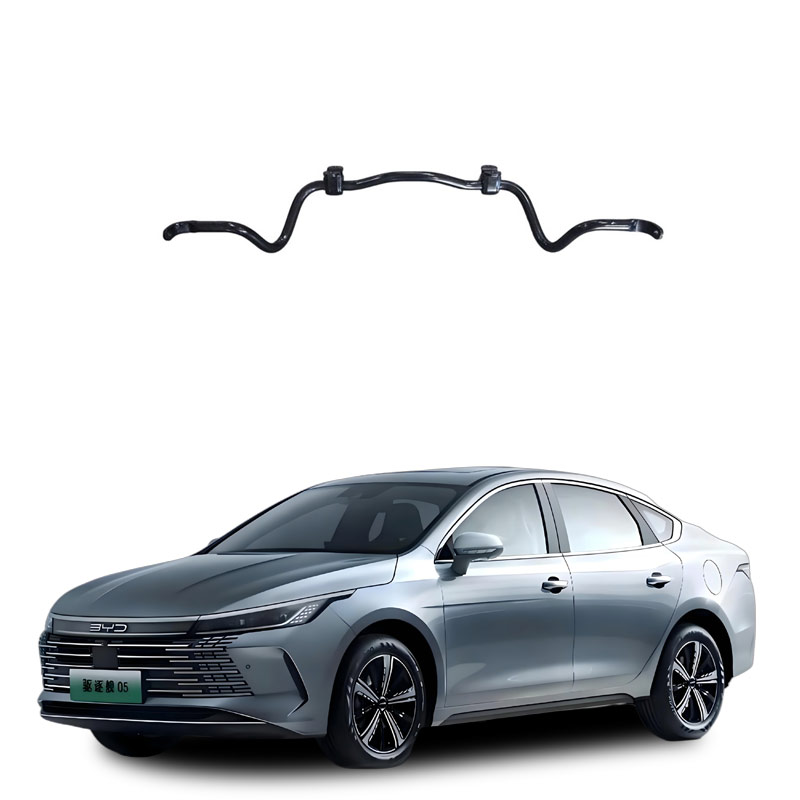

What is the automotive side stabilizer bar assembly?
The automotive side stabilizer assembly (also known as the anti-roll bar assembly or balance bar assembly) is a key component in the vehicle suspension system, primarily used to suppress vehicle body side-sway, enhance cornering stability, and improve ride comfort.
Core Definition and Function
Official Name: Side Stabilizer Bar Assembly (Lateral Stabilizer Bar Assembly), often abbreviated as "Stabilizer Bar", "Anti-Roll Bar", or "Balance Bar".
Core Function:
Reduce vehicle body side-sway during turns: The bar's torsional movement generates an opposing force, transferring some of the force from the outer wheel to the inner wheel, making the load distribution between the left and right wheels more even.
Improve handling response: During high-speed lane changes or emergency avoidance, the stabilizer bar shortens the vehicle's re-centering time, preventing "oversteer".
Improve comfort on bumpy roads: It suppresses the lateral shaking of the vehicle caused by the bouncing of a single wheel, reducing the queasy feeling for passengers.

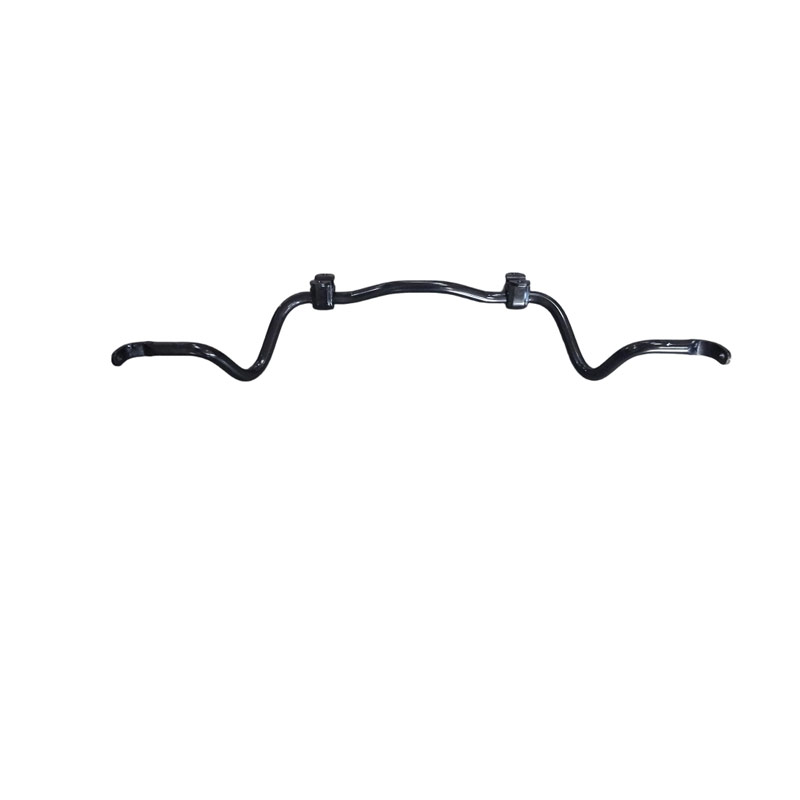

Structural Composition
A typical side stabilizer assembly consists of the following components:
Metal Bar: Mostly made of high-strength spring steel or cold-rolled steel, in a "U" shape or torsion bar form, with a diameter of approximately 2–5 centimeters.
Rubber Bushings (Rubber Sleeves): Fixed to the middle of the bar on the frame to absorb vibrations and allow for slight torsion.
Link Rods and Ball Joints: Connect the ends of the bar to the lower arm of the suspension, transmitting torque.
Dust Covers: Protect the ball joints from dust and moisture.
Note: In some sources, "side tie rod assembly" may refer to the steering tie rod (such as the cross tie rod or straight tie rod), which belongs to the steering system and has different functions from the stabilizer bar (suspension system). Please do not confuse them.
Model Configuration Differences
Front Stabilizer: Virtually all passenger cars are equipped with it, as the front wheels are responsible for steering and require higher stability.
Rear Stabilizer: Commonly found in vehicles priced above 150,000 yuan or sporty models; entry-level family cars (such as Wuling Hongguang) may omit it to reduce costs.
High-performance/Off-road Vehicles: May be equipped with "disconnectable" or "active" stabilizers, balancing off-road capability with road handling.
Fault Signals and Maintenance Suggestions
According to 2025 real-world data, aging of the stabilizer bar rubber sleeves is a common issue, with a failure rate of 65% after 3 years. Typical symptoms include:
• Abnormal noise: A "clicking" or "clattering" sound when passing over speed bumps or turning;
• Increased side-sway: Feeling "floaty" during turns and significant shaking;
• Reduced handling responsiveness: Slower steering response and slow return to center during emergency lane changes.
The automotive side stabilizer assembly (often referred to as the anti-roll bar or balance bar) is a key component in the vehicle suspension system, primarily used to suppress vehicle body side-sway, enhance handling stability and ride safety.
Here is a detailed explanation of its core functions:
Core Function
• Reduce vehicle body side-sway during turns: During turns, centrifugal force causes the outer wheel to bear more force and the inner wheel to rise. The stabilizer bar generates an opposing torque through torsion, counteracting the side-sway tendency, significantly reducing the angle of vehicle body inclination. Real-world tests show that vehicles equipped with stabilizer bars have a side-sway angle reduction of over 40%, significantly reducing the risk of rollover on slippery roads during emergency lane changes.
• Improve high-speed lane change response speed: During high-speed lane changes or emergency avoidance, the stabilizer bar shortens the vehicle's re-centering time. For example, vehicles with front and rear stabilizers (such as the 2025 model CR-V) have a lane change response time that is 0.6 seconds faster than those with only the front bar, equivalent to an additional 16.7 meters of reaction distance, effectively avoiding rollover or loss of control.
• Improve comfort on bumpy roads: When passing over speed bumps or uneven roads, the stabilizer bar coordinates the movement of the left and right suspensions, reducing the vertical vibration amplitude of the vehicle (real-world test shows a 45% reduction), and reducing the queasy feeling for passengers and the probability of motion sickness. Enhance tire grip: By limiting roll, maintaining a more even contact between the tires and the ground, it improves the traction and braking performance during turns, and indirectly reduces abnormal tire wear.
Improve passive safety: In extreme roll or collision scenarios, the stabilizer bars can limit excessive deformation of the vehicle body, providing additional protection space for passengers.
